ARM Knuckle-Yoke Arms

Non-Decorative Arms and Brackets

By Holophane

  • Overview
  • Specifications

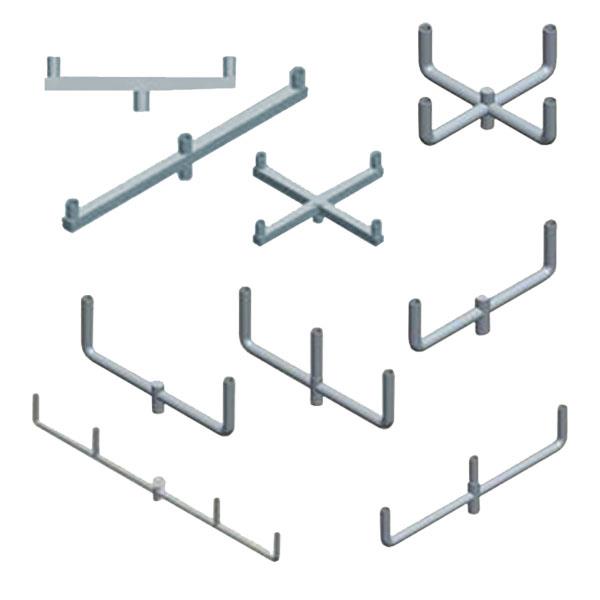

The ARM Series offers a variety of Steel round 2-inch knuckle or yoke mount solutions for tenon mount arm lighting installations. View drawings below for additional information
Read More
Read Less
Product Type Arm
Arm Mounting Type HUB, Tenon
Mounting Type Post Top
Primary Material Steel
Architectural Style Utility
Series ARM91, ARM89, ARM88, ARM96, ARM95, ARM94, ARM93

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET ARM88.pdf Steel bullhorn 2U bracket (2@180) 2-3/8 inch OD X 12 inch tall tenons 36 inch spacing slip fits B04 3/30/2023 View
    SPEC SHEET ARM89.pdf Steel bullhorn 3 in line bracket (3@120) 2-3/8 inch OD X 12 inch tall tenons 30 inch spacing slip 3/30/2023 View
    SPEC SHEET ARM91.pdf Steel bullhorn 3Y (3@120) 2-3/8 inch OD X 12 inch tall tenons slip fits B04 tenon 3/30/2023 View
    SPEC SHEET ARM93.pdf Steel bullhorn 4 in line 2-3/8 inch OD X 12 inch tall tenons 30 inch spacing slip fits B04 tenon 3/30/2023 View
    SPEC SHEET ARM94.pdf Steel bullhorn 4 in line 2-3/8 inch OD X 12 inch tall tenons 36 inch spacing slip fits B04 tenon 3/30/2023 View
    SPEC SHEET ARM95.pdf Steel bullhorn 4U (4@90), 2-3/8 inch OD X 12 inch tall tenons slip fits B04 tenon 3/30/2023 View

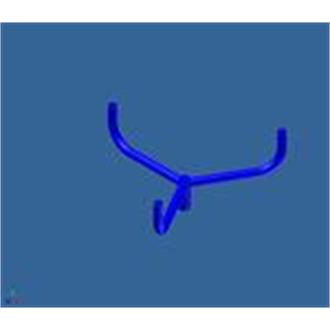

    SPEC SHEET ARM96.pdf Steel bullhorn 4U (4@90) 2-3/8 inch OD X 12 inch tall tenons slip fits F06 tenon 3/30/2023 View

  • Photometry & Revit (BIM)

  • Spectral Data Sheets

  • Guideline Specifications

    Document Type Document Title Description Updated View
    Guideline Specification Sheets Pole Arm Selection Guide.xlsx Arms & Brackets Selection Guide 1/12/2021
