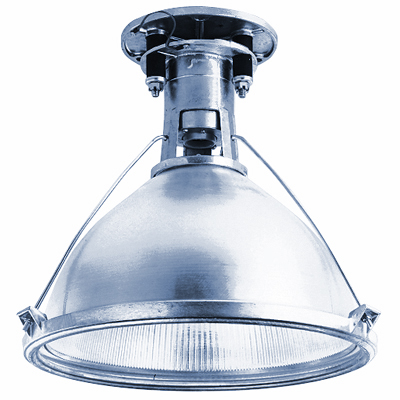

cranelite_large

Cranelite

High Bays

by Holophane

For Heavy Duty, Over Head Crane Lighting.
Industrial plants are usually lit with high bay reflectors at truss height above cranes. When cranes are in use, the illumination from overhead luminaires is blocked by the crane bridge and hoist motor assembly. To compensate for this loss of light under the crane, provisions are made for installation of luminaires under the catwalk or alongside the crane box structure. ~13;~10;

~13;~10;Basic requirements for mechanical and electrical assembly are fixture parts constructed ruggedly to withstand rough service and vibration inherent in crane operation. In addition, luminaires must be designed to produce the highest initial and maintained outputs, as well as deep shielding of lamps to prevent glare when crane operators and floor workers are handling products. Safe operation is enhanced by the Cranelite~8217;s evenly distributed illumination. ~13;~10;

~13;~10;Cranelite~174; luminaires are available for all indoor and outdoor applications in incandescent or HID lamp operation regardless of span or lift of cranes.

Listings: UL/CUL; Damp Location; Wet Location with option

  • Suggested Replacement Products

  • Spec Sheets

    Document Type Document Title Description Updated View
    {{document.DocumentType}} {{document.DocumentTitle}} {{document.Description}} {{document.UpdatedDate | date: 'MM/dd/yy'}} View
  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.<br >

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    • Request BIM or IES Files

      CLICK HERE to start your request for a BIM Model or IES file.
  • Specifications

    Brand Holophane
    Light Source HID - High Pressure Sodium, HID - Metal Halide, Incandescent
    Environment Indoor
    Environmental Listing Damp Location
    Regulatory Listing UL
    Mounting Type Surface
    Series CRAN
    Product Type High Bay
