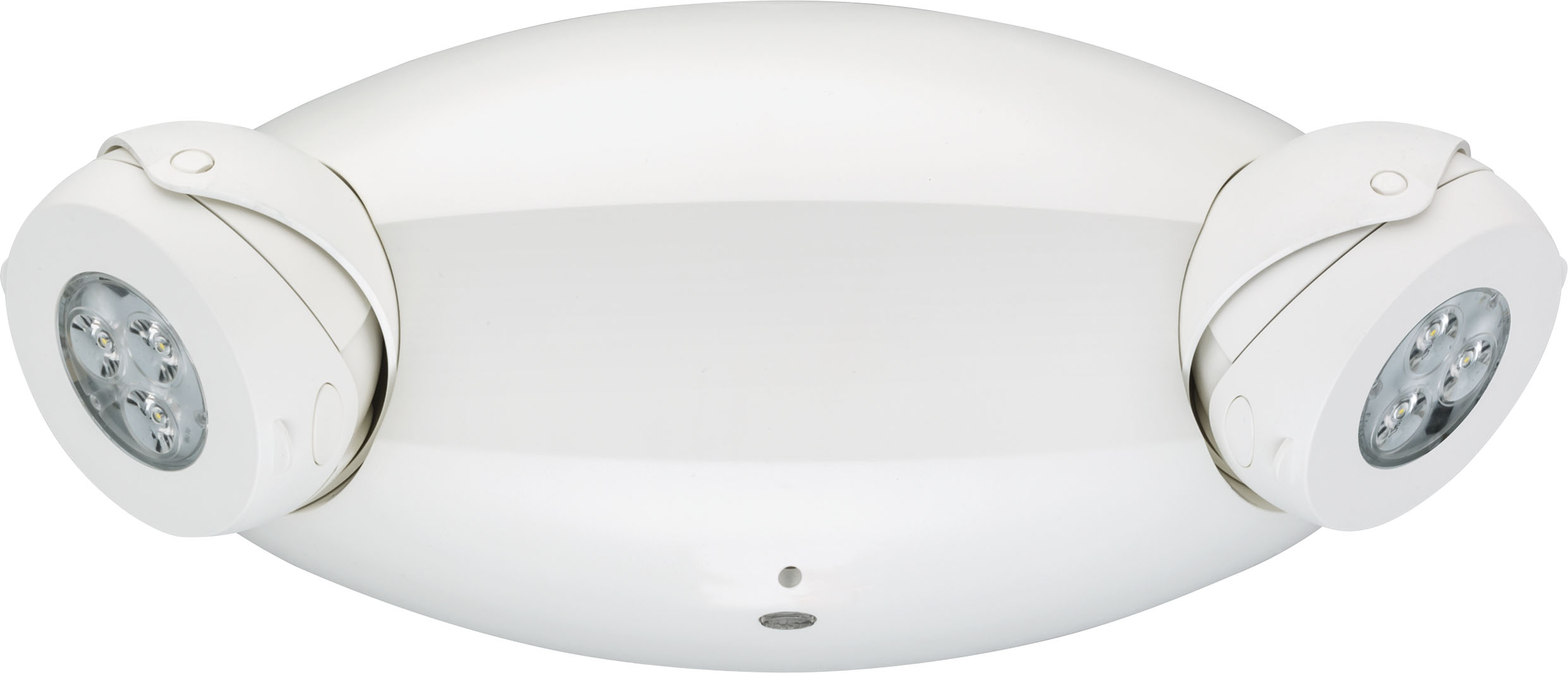

CZQ6L W Front
CZQ6L W Side 1
CZQ6L W Side 2

CZQ6L Emergency Light

Cortez™ LED Adjustable Optics 1100 Lumens Emergency Light

by Holophane

The CZQ6L from Holophane® is an aesthetically pleasing emergency LED light fixture. It provides a minimum of 90 minutes of illumination with constant light output when there is a loss of power. Equipped with six high performance LEDs and full range swivel lamp heads it is ideal for a wide-range of mounting height applications (from 7.5' to 30+'), requiring aimable optics. The linear pattern provides wide uniform distributions that deliver broad spacing up to 98' and low max to min ratios that far exceed code requirements.

The CZQ6L comes standard with universal input voltage (120-347 Volt). The upgraded Lithium Iron Phosphate batteries provide extended run-times of up to 4 hours or up to 32 watts of remote capacity. Also, remote testing and self-diagnostics that meet and exceed code required testing while significantly reducing the time and cost of compliance. Plus, constant light output over the full discharge period.
  • Suggested Replacement Products

  • Spec Sheets

    Document Type Document Title Description Updated View
    {{document.DocumentType}} {{document.DocumentTitle}} {{document.Description}} {{document.UpdatedDate | date: 'MM/dd/yy'}} View
  • Specifications

    Brand Holophane
    Light Source LED - Static
    Lumen Output 1100 LM
    CCT 5000 K
    CRI 70
    Environment Indoor
    Compliance Listing BAA, CA Title 20, FCC
    Environmental Listing Damp Location
    Regulatory Listing C-UL-US, NFPA 101, NFPA 70, NOM, UL
    Voltage Rating 120-347
    Mounting Type Surface
    Mounting Location Ceiling, Wall
    Primary Material Thermoplastic
    Series CZQ6L
    Product Type Emergency Lighting Unit
