CZQ4L Emergency Light

Cortez™ LED Adjustable Optics 640 Lumens Emergency Light

By Holophane

    CA Title 20Buy America(n) Option Available
  • Overview
  • Specifications

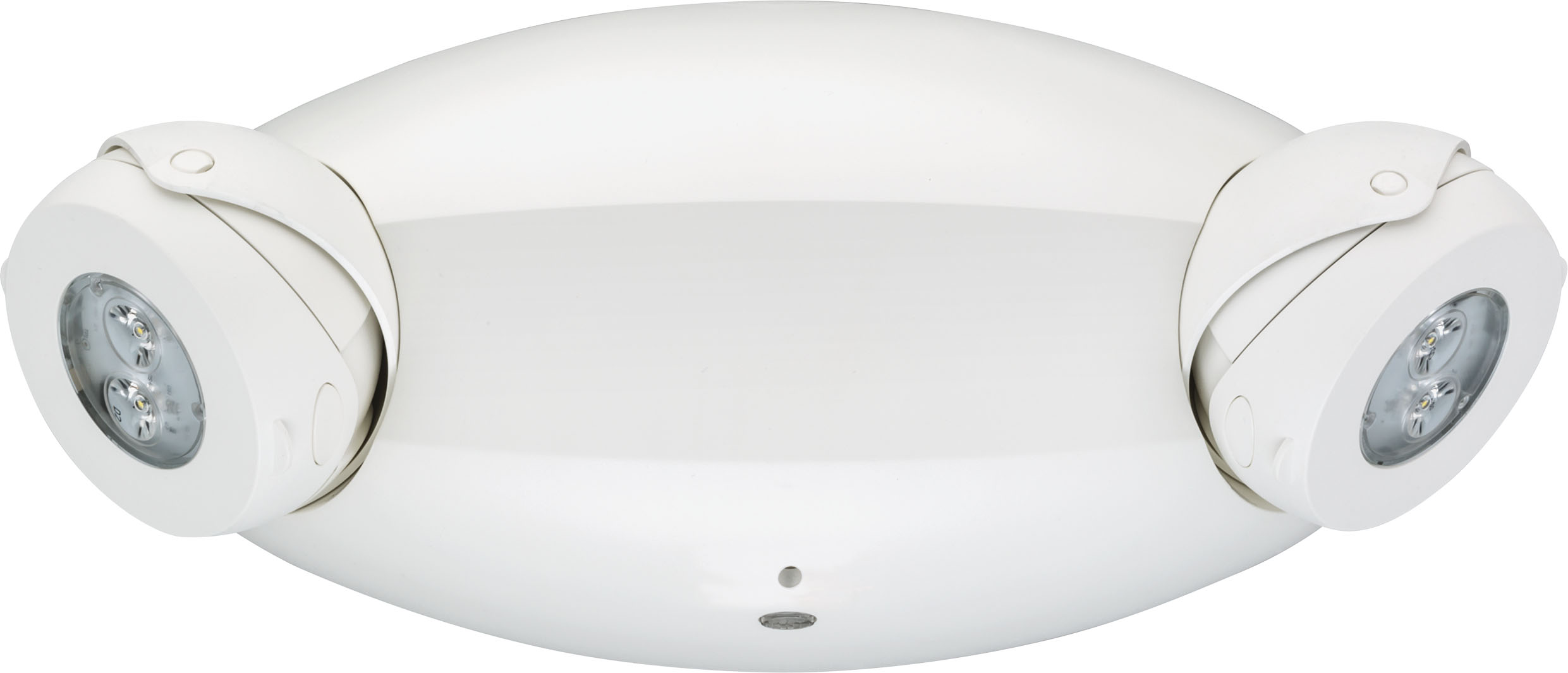

The CZQ4L from Holophane® is an aesthetically pleasing emergency LED light fixture. It provides a minimum of 90 minutes of illumination when there is a loss of power. Equipped with four high performance LEDs and full range swivel lamp heads it is ideal for a wide-range of mounting height applications (from 7.5' to 24'), requiring aim-able optics. The linear pattern provides wide uniform distributions that deliver broad spacing up to 67' and low max to min ratios that far exceed code requirements.

The CZQ4L optional Lithium platform comes standard with universal input voltage (120-347 Volt). The upgraded Lithium Iron Phosphate battery provide extended run-times of up to 4 hours or up to 32 watts of remote capacity. Also, remote testing and self-diagnostics that meet and exceed code required testing while significantly reducing the time and cost of compliance. Plus, constant light output over the full discharge period.
  • STAR Self-Testing Automated Reporting option
Read More
Read Less
Light Source LED - Static
Lumens 640 LM
CCT / LED Color 5000 K
CRI 70
Compliance Listing BAA, CA Title 20
Environmental Listing Damp Location
Regulatory Listing C-UL-US, NFPA 101, NFPA 70, NOM, UL
Product Type Emergency Lighting Unit
Voltage Rating 120-347
Mounting Type Surface
Mounting Location Ceiling, Wall
Primary Material Thermoplastic
Series CZQ4L

Read More Read Less

  • Suggested Replacement Products


  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET CZQ4L_CZQ6L.pdf CZQ4L and CZQ6L LED emergency light 3/9/2022 View
    SPEC SHEET CZQRE.pdf CZQRE, LED Thermoplastic Emergency Remote 11/17/2022 View
    SPEC SHEET CZQRW.pdf CZQRW, LED Wet Location Emergency Remote 1/30/2023 View
    SPEC SHEET CZWPVS.pdf CZWPVS, Wet Protection Vandal Shield (for CZQ2L, CZQ4L, CZQ6L series only) 1/30/2023 View

    Design Select

    Need to Create a Submittal Spec Sheet? Take Me There

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.
  • Spectral Data Sheets

  • Guideline Specifications

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions 912-00029-201_Install Instr_CZWPVS_EN-SP-FR.pdf CZWPVS, wet vandal shield - installation instruction sheet for CZQ2L, CZQ4L_CZQ6L or CZQRE series 4/14/2020 View
    Installation Instructions 912-00070-002_Rev A.pdf RTKITHLP remote tester kit installation instruction sheet 12/5/2019 View
    Installation Instructions CZQ4L_NICAD-INSTALLATION-INSTRUCTIONS-912-00027-203.pdf CZQ4L_Nicad_non-SDRT installation instruction sheet, Rev B 12/19/2022 View
    Installation Instructions CZQ4L-CZQ6L_AELR_INSTALLATION-INSTRUCTIONS_912-00027-301.pdf CZQ4L_CZQ6L installation instruction sheet, Rev D 12/19/2022 View
    Installation Instructions CZQ4L-CZQ6L_INSTALLATION_INSTRUCTIONS_912-00027-201.pdf CZQ4L_CZQ6L LTP UVOLT installation instruction sheet, Rev E 12/19/2022 View
    Material Safety Data Sheet sds-for-lithium-iron-phosphate_-12-8v_-6-0ah_-4s2p.pdf SDS sheet for ELB 12P806LTP, Lithium Iron Phosphate_12.8V 6.0AH (ELM4L & ELM6L) 2/18/2021 View
    Material Safety Data Sheet sds-for-lithium-iron-phosphate_-9-6v_-3-0ah_-3s1p.pdf SDS sheet for ELB 9P63LTP, Lithium Iron Phosphate_9.6V 3.0AH 2/18/2021 View
    Material Safety Data Sheet SDS-Lithium-Iron-Phosphate_9.6V_6.0AH_3S2P.pdf SDS sheet for ELB 9P606LTP, Lithium Iron Phosphate_9.6V 6.0AH 3/16/2022 View
  • Utility Rebate Search

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Brochures HL_659289.03POD.pdf Holophane Retail Brochure 5/11/2021 View
    Brochures Holophane Life Safety Portfolio Holophane Life Safety Portfolio 12/27/2021 View
    FAQ Cortez CZQxL FAQ Cortez CZQxL FAQ 4/9/2020 View
    Sell Sheet Cortez CZQ4L and CZQ6L Sell Sheet Cortez CZQ4L and CZQ6L Sell Sheet 4/9/2020 View
    White Paper Non Title 20 Life Safety Flyer Non Title 20 Life Safety Flyer 2/24/2021 View
