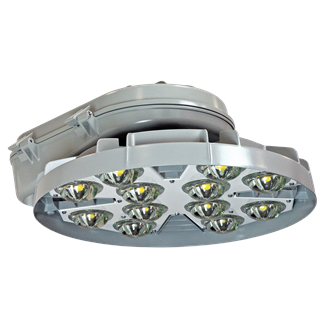

HMAO™ LED IV - Highmast Lighting
    DLC StandardBuy America(n) Option AvailableBuy America(n) Option Available
  • Overview
  • Specifications
Read More
Read Less
Light Source LED - Static
Lumens 31,000 LM, 42,000 LM, 63,000 LM, 85,000 LM, 105,000 LM, 112,000 LM, 120,000 LM
CCT / LED Color 3000 K, 4000 K, 5000 K
CRI 70
Compliance Listing BAA and BABA, DLC Standard
Environmental Listing IP65, IP66, Wet Location
Regulatory Listing C-UL-US
Product Type High Mast
Voltage Rating 120-277, 277-480, 347-480
Mounting Type Arm Mount
Mounting Location Pole
Primary Material Aluminum
Architectural Style Traditional
Series HMLED4

Read More Read Less
