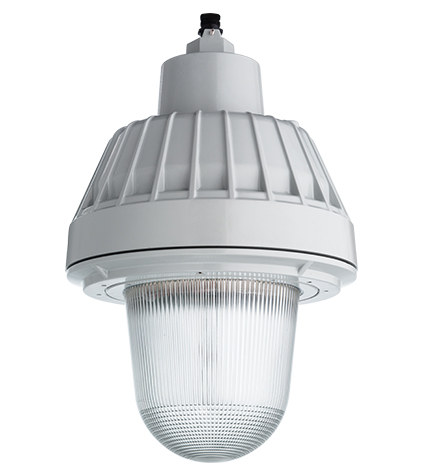

HRLL Area Light

Hazardous Location LED Area Light

By Holophane

    Buy America(n) Option Available
  • Overview
  • Specifications
Versatile, heavy-duty explosion-proof LED fixture designed for hazardous environments where flammable gases or vapors, flammable liquids, combustible dust and/or ignitable fibers may exist. Suitable for wet locations and marine environments with saltwater spray. Equipped with an explosion-proof, prismatic glass globe and wireless electromechanical connector block for quick, safe fixture removal and bench-top maintenance. The rugged, copper-free cast-aluminum construction with exterior baked-on powder epoxy for added corrosion protection. Available in five mounting styles: pendant; ceiling; 90° wall bracket; 25° stanchion-mount and, trunnion. It is factory sealed, no external seals required. Suitable for -20°C to +55°C ambient temperature. UL 844 Listed: Class 1, Division 1, Group C & D; Class 2, Division 1, Groups E, F & G; Class 3; Class 1, Zone 1, Groups IIA & IIB. Additional certifications and ratings include NEMA 4X, IP66, UL 1598A Marine outside and UL 1598 - Wet location.
Read More
Read Less
Lumens 8000 LM
CCT / LED Color 5000 K
CRI 70
Compliance Listing BAA
Environmental Listing Class I, Div 1, Class II, Div 1, Class III, IP66, NEMA 4X
Regulatory Listing UL
Product Type Low Bay
Voltage Rating 120, 208, 240, 277
Mounting Type Pendant, Pole Mount, Surface, Yoke
Mounting Location Ceiling, Pole, Wall
Primary Material Aluminum
Architectural Style Traditional
Series HRLL

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET HRLL_.pdf HRLL Hazardous Location LED Area Light Specsheet 8/1/2023 View

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.
    Clear Filters

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.

  • Spectral Data Sheets

    >> CLICK HERE to Download Spectral Data FAQs

    Document Type Document Title Description Updated View
    Spectral Data Sheet HRLL Spectral Data Report HRLL 50K 64CRI 9/6/2023 View

  • Guideline Specifications

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions IM-376 HRLL Installation Instructions 8/15/2019 View

  • Utility Rebate Search

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Brochures Holophane Hazardous Lighting Guide Hazardous Lighting Product Portfolio 4/3/2023 View
    Brochures Holophane Industrial Product Portfolio Selection of High Bays, Low Bays, Demanding and Hazardous Location products 9/26/2022 View
    Brochures HRLL LED Brochure Versatile, heavy-duty explosion-proof LED fixture designed for hazardous environments. View
