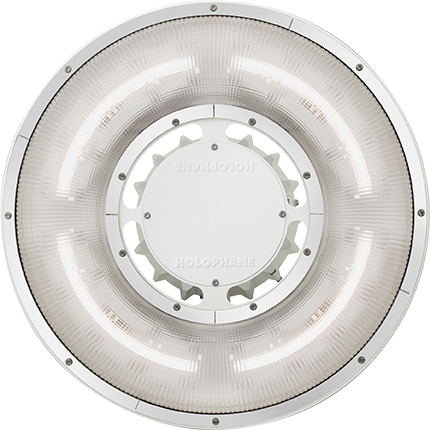

VLED Bottom
VL

VL High Bay

Vantage® LED Food Processing High Bay

By Holophane

    DLC PremiumCA Title 20
  • Overview
  • Specifications
The Vantage LED luminaire exceeds rigorous demands of food-processing plants and related areas, thanks to its strategic sloped shape and ultra-sleek corrosion-resistant finish that repel water and provide nowhere for food, dirt or debris to hide. Choose either prismatic acrylic or polycarbonate lens which stand up to chemicals used in food-processing plants and similar applications. Meets stringent requirements IP66, IP67, IP69, and NSF Splash Zone 2. Over 250 configurations are DLC Standard or DLC Premium qualified products. Vantage is the optimal solution to meet code and qualify for possible rebates. Energy-saving control options for all applications including 0-10V dimming standard, NSF approved occupancy sensor and wireless control options for zones, and scheduling. Control a single fixture or entire space. Available with nLight® AIR and IOTA ETS Emergency Control Device.
Read More
Read Less
Light Source LED - Static
Lumens 12,000 LM, 15,000 LM, 18,000 LM, 24,000 LM, 28,000 LM, 32,000 LM
CCT / LED Color 3000 K, 4000 K, 5000 K
CRI 70, 80, 90
Compliance Listing CA Title 20, DLC Premium, DLC Standard
Environmental Listing Class II, Div 2, IP65, IP66, IP67, IP69K, NSF, Wet Location
Regulatory Listing C-UL-US
Product Type High Bay
Dimming Protocol 0-10V
Voltage Rating 120, 120-277, 208, 240, 277, 277-480, 347, 347-480, 480
Mounting Type Pendant, Suspended
Mounting Location Ceiling
Primary Material Aluminum
Architectural Style Traditional
Series VL

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET VL_ Vantage LED Food Processing High Bay 1/10/2023 View

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.
    Clear Filters

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions Bluetooth Sensor Programming Instruction Videos.pdf Click the link below the QR code for access to the video. 5/23/2019 View
    Installation Instructions VL HAZ Installation Instructions IM-449.D 7/9/2021 View
    Installation Instructions VL Installation Instructions IM-354-J 6/25/2021 View
    Material Safety Data Sheet VL FE10WCP MSDS Lithium Iron (LiFePO4) 8/5/2021 View

  • Utility Rebate Search

    To look-up a rebate for this product, please follow the steps below:

    Step 1: Enter the Zip Code or Select the State and Utility

    Step 2: Ensure that the correct Product Category is selected if there is more than one option


  • Replacement Parts

    Document Type Document Title Description Updated View
    Replacement Part Spec Sheet VL Replacement Parts.pdf Current Generation (Produced After 3/12/18) Driver, LED Board, Surge and Lens Repair Kits 9/21/2021 View

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Brochures Holophane Industrial Product Portfolio Selection of High Bays, Low Bays, Demanding and Hazardous Location products 9/26/2022 View
    Brochures XVOLT Driver Protection Holophane XVOLT Zeta Shield Driver Protection 1/24/2022 View
    FAQ XVOLT Driver Protection FAQ Holophane XVOLT Zetashield Driver Protection FAQ 7/19/2022 View
