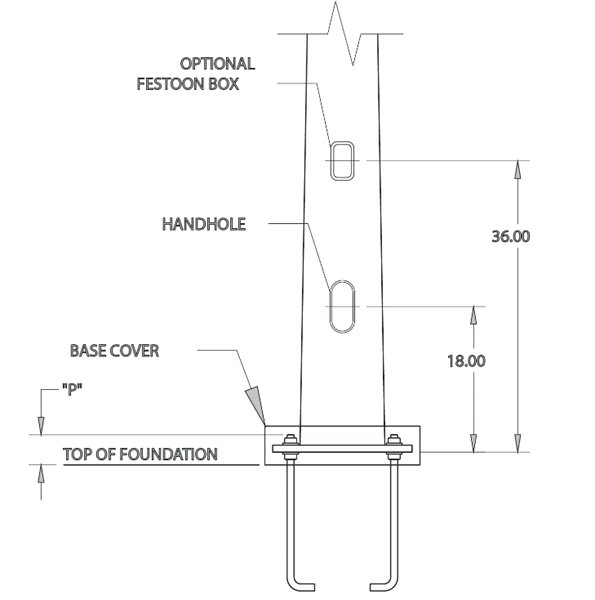

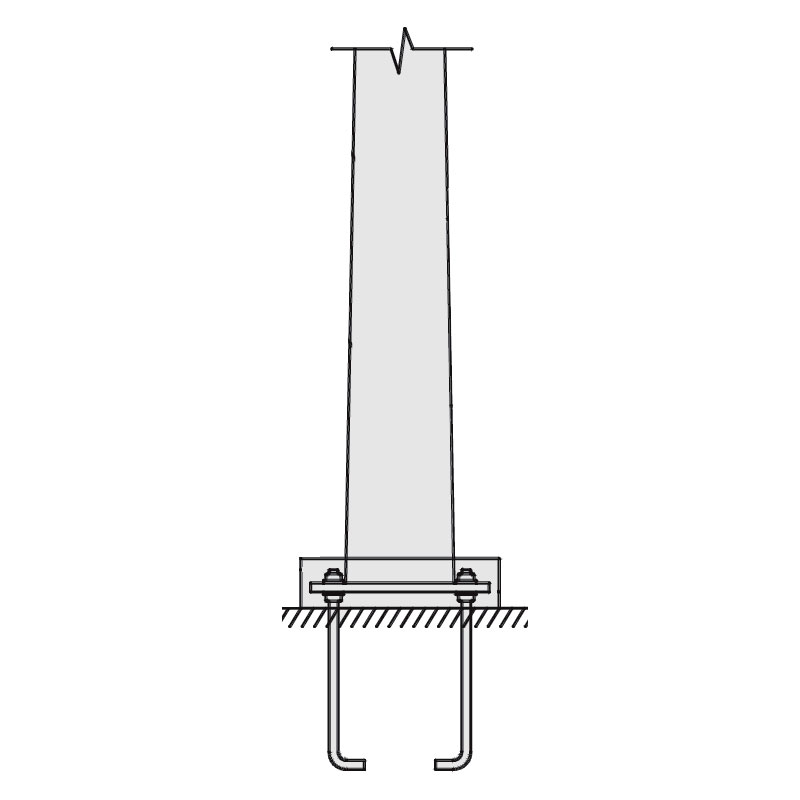

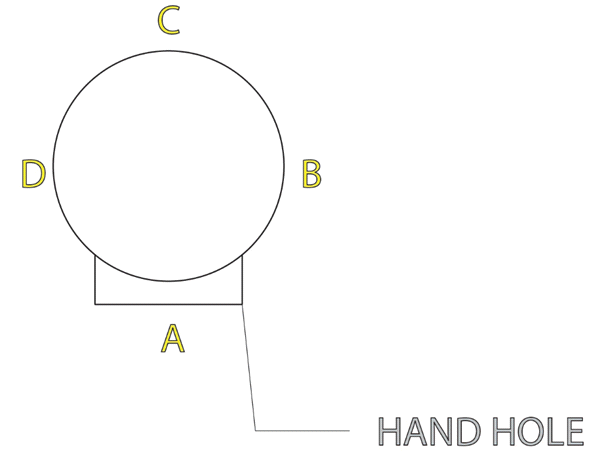

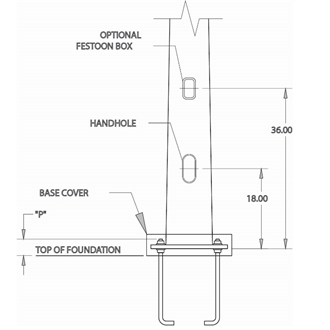

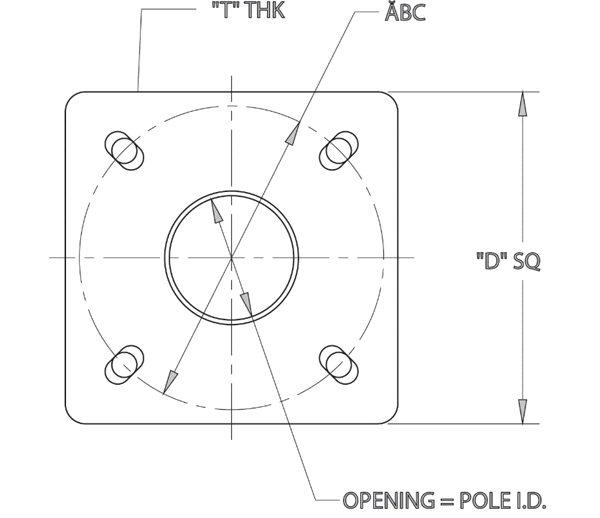

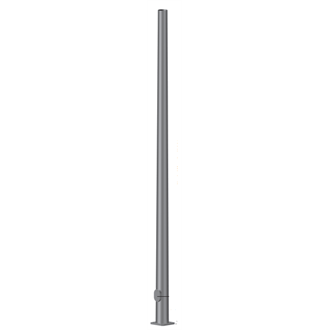

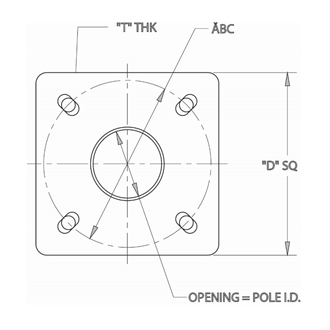

by HolophanePole shaft is one piece, low carbon alloy steel per ASTM A595, Grade A with 55,00-PSI minimum yield strength. Pole base shall be per ASTM A36 and shall telescope pole shaft and be circumferentially welded top and bottom. Hand hole is 2” x 4” minimum, cover and fasteners are included. Base covers shall be two piece, interlocking construction. Finish shall match pole. Removable pole cap shall be provided with each drill pattern type pole. Non-structural fasteners shall be stainless steel. Galvanized poles will be finished per ASTM A123. Painted poles shall be semi-gloss powder paint.
Suggested Replacement Products
Need Product Assistance? (e.g. How to Buy, Technical Support, Warranty)
How to Buy
Holophane products are primarily sold through our factory direct sales team, as well as, a network of agents and distributors for the utility market.
Acuity Brands is dedicated to providing outstanding technical support. Please click on the appropriate link below, or feel free to
call us at 1.800.705.SERV (7378).

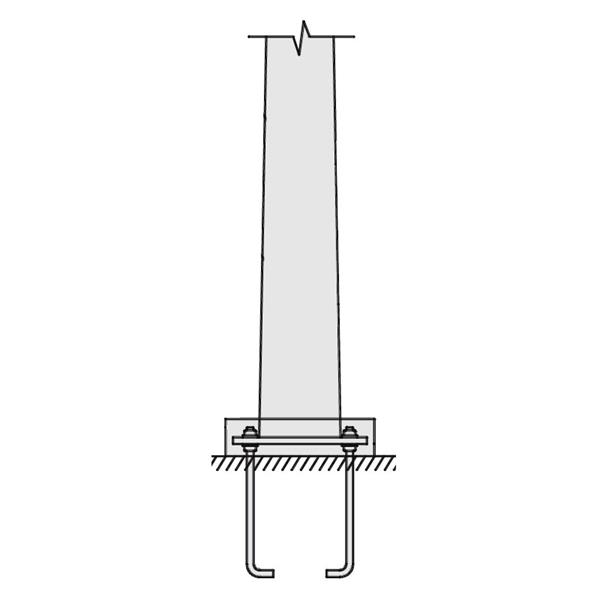

|Mounting Type||Anchor Based|
|Pole Height||20, 25, 30, 35, 39, 50|
|Pole Shaft Shape||Round|
|Pole Shaft Style||Straight|
|Anchor Bolt Circle Diameter||10, 10.5, 11, 11.5, 12.5, 13, 13.5, 9, 9.5|
