SSA Pole

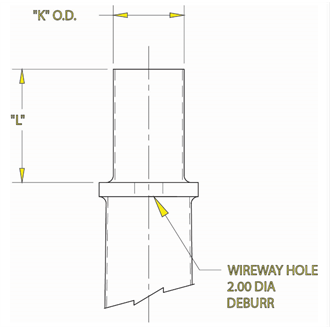

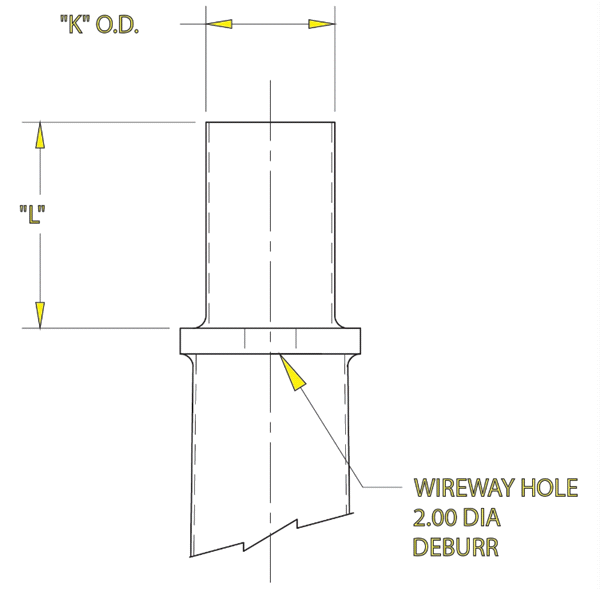

SSA tenon.PNG

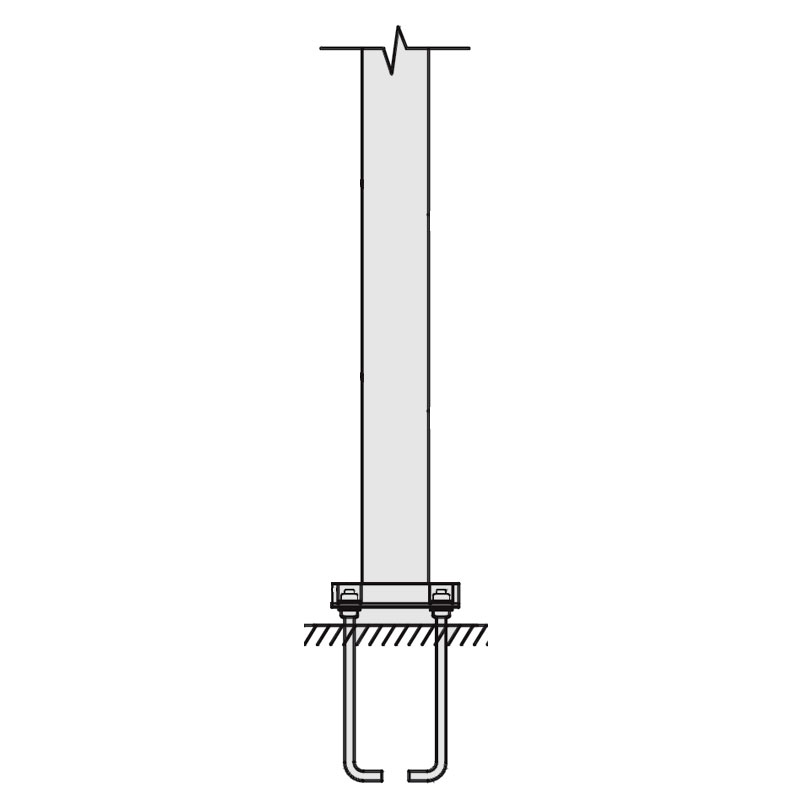

SSA HLP Pole

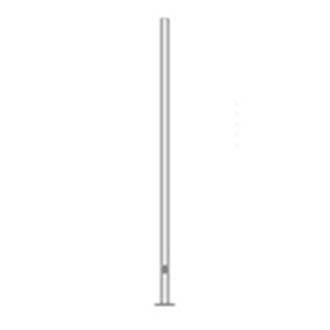

Square Straight Aluminum Pole

by Holophane

Pole shaft is one piece, 6005, 6061, or 6063-aluminum alloy, heat-treated to a T6 temper. Pole base shall be 356 or A356 aluminum alloy, heat-treated to a T6 temper after welding. Hand hole is 2” x 4” minimum, cover and fasteners are included. Nut covers shall be provided as standard. Finish shall match pole. Removable pole cap shall be provided with each drill pattern type pole. Anodized, painted, or satin brush finish. Painted poles shall be semi-gloss powder paint.
  • Suggested Replacement Products

  • Spec Sheets

    Document Type Document Title Description Updated View
    {{document.DocumentType}} {{document.DocumentTitle}} {{document.Description}} {{document.UpdatedDate | date: 'MM/dd/yy'}} View
  • Specifications

    Brand Holophane
    Environment Outdoor
    Mounting Type Anchor Based
    Primary Material Aluminum
    Pole Height 10, 12, 14, 15, 16, 18, 20, 25, 30, 32, 35, 8
    Pole Shaft Shape Square
    Pole Shaft Style Straight
    Anchor Bolt Circle Diameter 11, 12.5, 9
    Series SSA
    Product Type Pole
    Architectural Style Utility
