SSS Pole

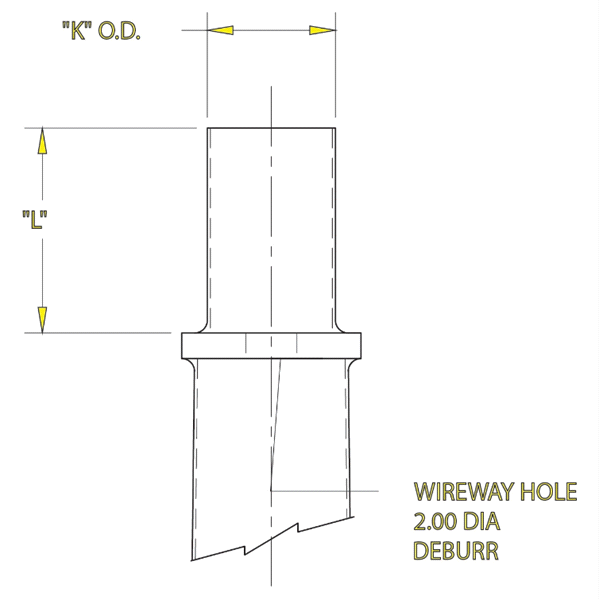

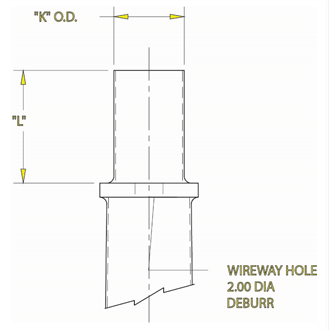

SSS tenon.PNG

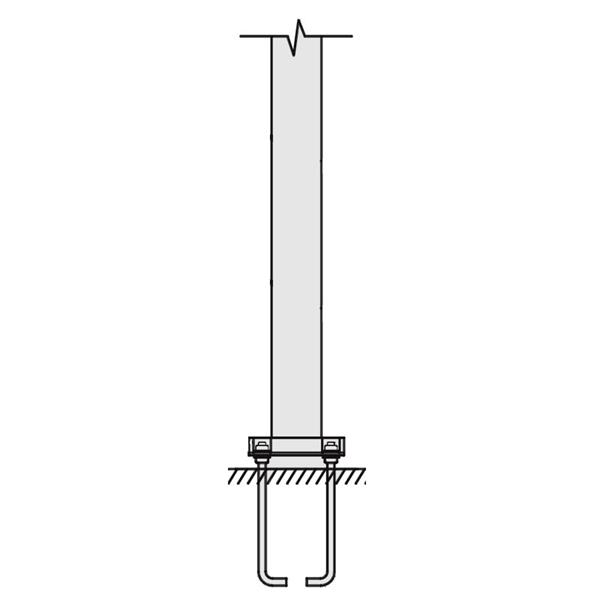

SSS HLP Pole

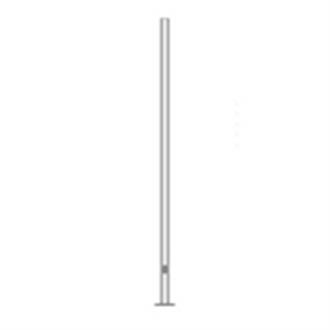

Square Straight Steel Pole

by Holophane

Pole shaft is one piece, low carbon alloy steel per ASTM A595, Grade A with 55,00-PSI minimum yield strength. Pole base shall be per ASTM A36 and shall telescope pole shaft and be circumferentially welded top and bottom. Hand hole is 2” x 4” minimum, cover and fasteners are included. Base covers shall be two piece, interlocking construction. Finish shall match pole. Removable pole cap shall be provided with each drill pattern type pole. Non-structural fasteners shall be stainless steel. Galvanized poles will be finished per ASTM A123. Painted poles shall be semi-gloss powder paint.
  • Suggested Replacement Products

  • Spec Sheets

    Document Type Document Title Description Updated View
    {{document.DocumentType}} {{document.DocumentTitle}} {{document.Description}} {{document.UpdatedDate | date: 'MM/dd/yy'}} View
  • Specifications

    Brand Holophane
    Environment Outdoor
    Mounting Type Anchor Based
    Primary Material Steel
    Pole Height 10, 12, 14, 16, 18, 20, 25, 30, 35, 39
    Pole Shaft Shape Square
    Pole Shaft Style Straight
    Anchor Bolt Circle Diameter 11, 12, 8.5
    Series SSS
    Product Type Pole
    Architectural Style Utility
