HZ Arm

Horizontal Non-Decorative Roadway Arm

By Holophane

  • Overview
  • Specifications

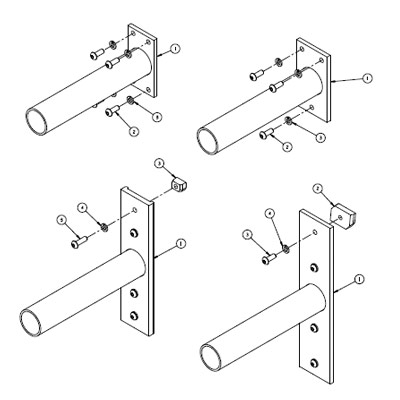

Contemporary designed horizontal arms to be mounted on square poles and SiteLink poles. The luminaire arms are made from aluminum pipe and utilize stainless steel hardware. The arms mount on the side of the pole through the use of a mounting kit. Arms are finished with polyester powder paint applied to ensure maximum durability.
Read More
Read Less
Product Type Arm
Arm Mounting Type Bolt On, Side
Mounting Type Surface
Primary Material Aluminum
Pole Shaft Shape Fluted
Pole Shaft Style Fluted, Smooth
Architectural Style Traditional, Utility
Series HZ

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET ARM_HZ_.pdf Horizontal arm 1/12/2023 View

  • Photometry & Revit (BIM)

  • Spectral Data Sheets

  • Guideline Specifications

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    CAD d7278.pdf 2D DWG Horizontal Arm Dimensions 8/5/2020 View
