DSHZ

DSHZ Emergency Lighting Unit

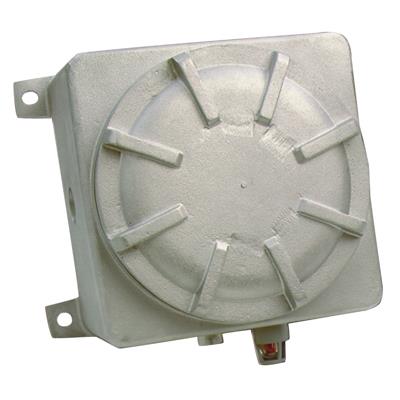

DeSoto™ NEMA-Hazardous Emergency Lighting Unit

by Holophane

Suitable for use in ClassI, Div. 1, Groups C& D, Zones 0, 1 & 2, Groups IIA, IIB + H2 &IIC; Class I, Div. 2, Groups C & D, Zone 2, Groups IIA, IIB + H2 & IIC; Class II Div. 1, Groups E, F & G and Class III hazardous location areas. DeSoto~8482; HZ features Copper free cast aluminum enclosure designed to withstand the pressure of internal arc generated explosions without allowing propagation to the hazardous atmosphere. Enclosure includes three 3/4" threaded conduit entries for AC input and two for mounting hazardous fixtures. Listings: UL Listed
  • Suggested Replacement Products

  • Spec Sheets

    Document Type Document Title Description Updated View
    {{document.DocumentType}} {{document.DocumentTitle}} {{document.Description}} {{document.UpdatedDate | date: 'MM/dd/yy'}} View
  • Specifications

    Brand Holophane
    Environment Demanding, Hazardous, Indoor, Outdoor
    Environmental Listing Class I, Div 1, Class I, Div 2, Class II, Div 1, Class II, Div 2, Class III
    Regulatory Listing NFPA 101, UL
    Voltage Rating 120, 277
    Mounting Type Surface
    Mounting Location Ceiling, Wall
    Primary Material Aluminum
    Series DSHZ
    Product Type Emergency Lighting Unit
