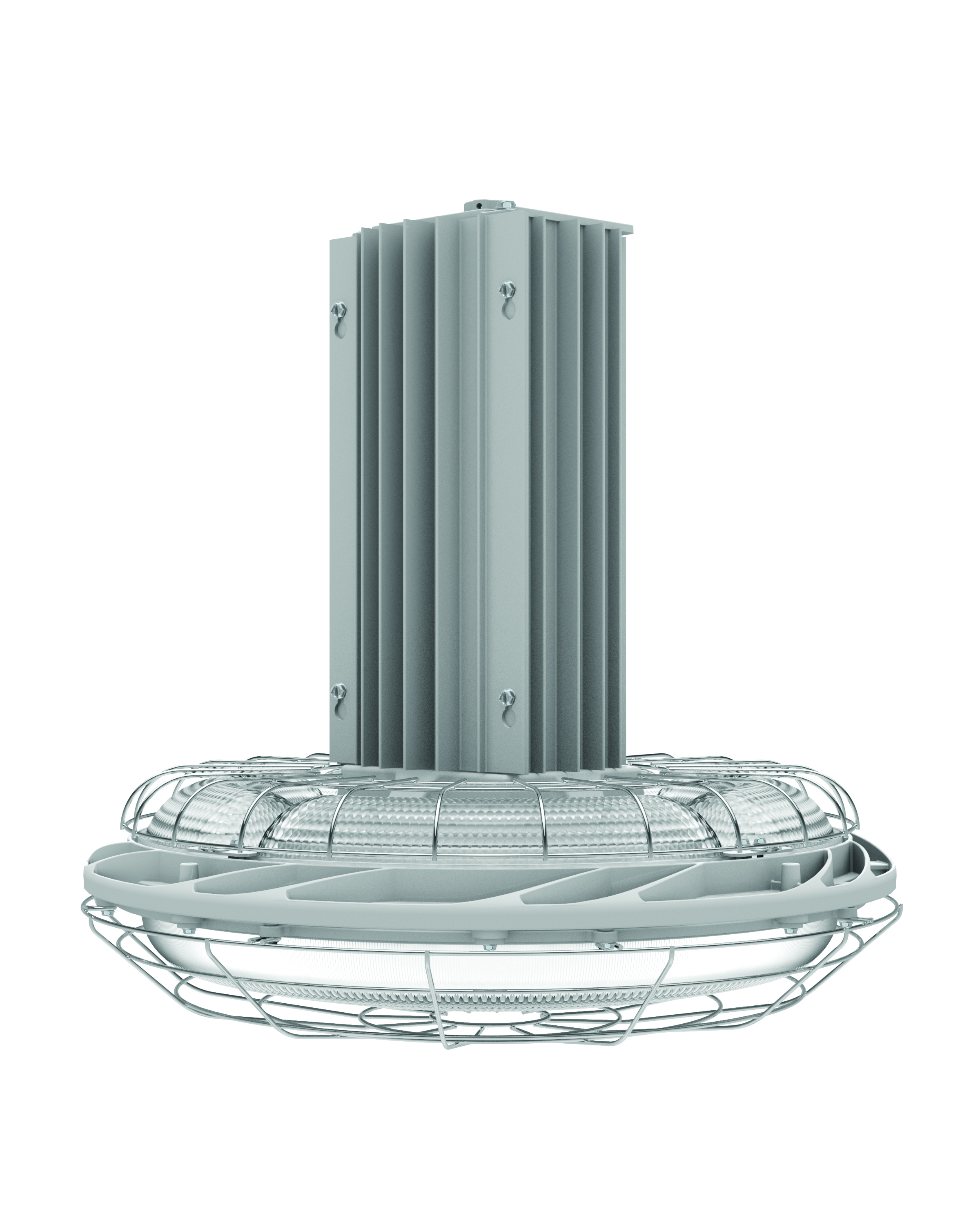

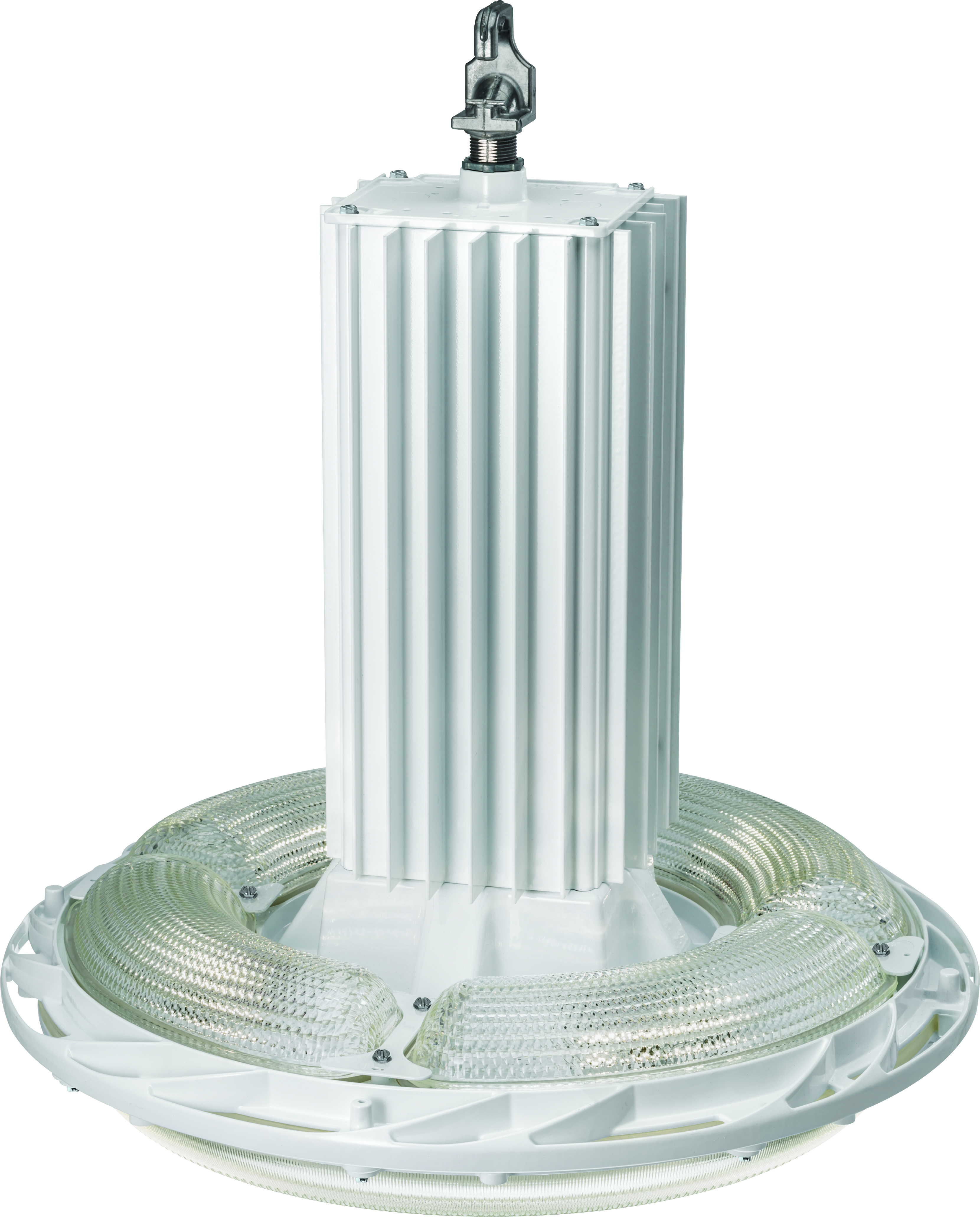

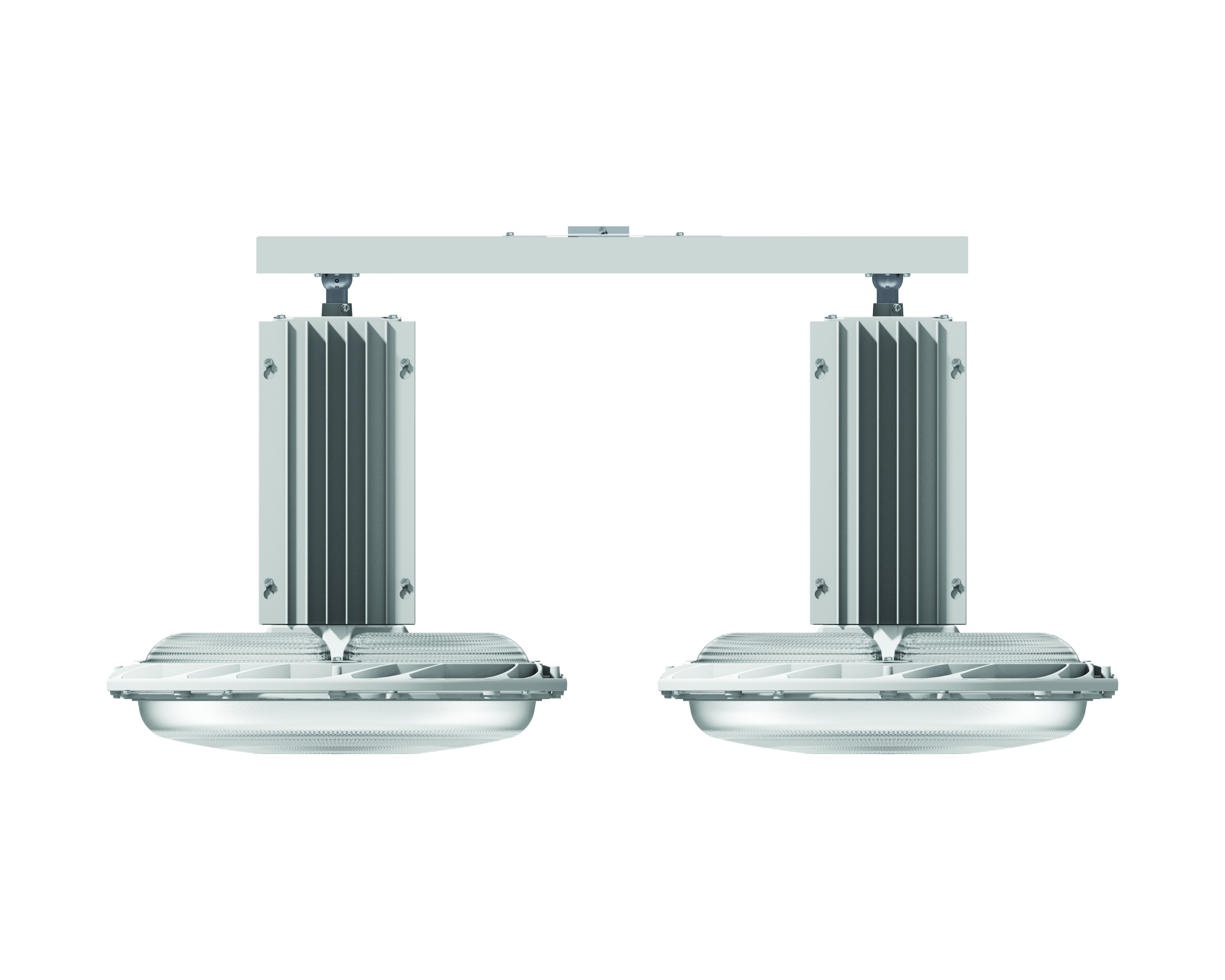

by HolophaneThe Phuzion™ PHST LED Twin high bay is designed to deliver intentional up-lighting, in addition to traditional down-lighting. With this side-by-side "twin" design, it can reduce glare and visual contrast by essentially eliminating the cave-like atmosphere of high bay applications and creating unprecedented lighting uniformity for an open look and feel you can see. Its distinctive design ships standard with 86% down-light and 14% up-light. Independent dimming control of the up-light and down-light allows flexibility to proportionately alter this ratio. Optional integration with XPoint™ Wireless lighting controls deliver flexible zone and fixture-based configuration, automated energy savings and help support building energy code compliance. With the durability of the borosilicate glass, multiple lumen packages, versatile mounting, and emergency battery back-up, the Phuzion™ PHST LED high bay is truly up, down and all around, one of a kind.
Suggested Replacement Products
Need Product Assistance? (e.g. How to Buy, Technical Support, Warranty)
How to Buy
Holophane products are primarily sold through our factory direct sales team, as well as, a network of agents and distributors for the utility market.
Acuity Brands is dedicated to providing outstanding technical support. Please click on the appropriate link below, or feel free to
call us at 1.800.705.SERV (7378).
|Light Source||LED - Static|
|Lumen Output||60,000 LM, 70,000 LM, 80,000 LM, 90,000 LM|
|CCT||3000 K, 3500 K, 4000 K, 5000 K|
|CRI||70, 80, 90|
|Dimming Protocol Compatibility||0-10V|
|Environmental Listing||Damp Location|
|Regulatory Listing||CSA, CSAus|
|Voltage Rating||120, 120-277, 208, 240, 277, 347, 347-480, 480, HVOLT, MVOLT|
|Product Type||High Bay|
