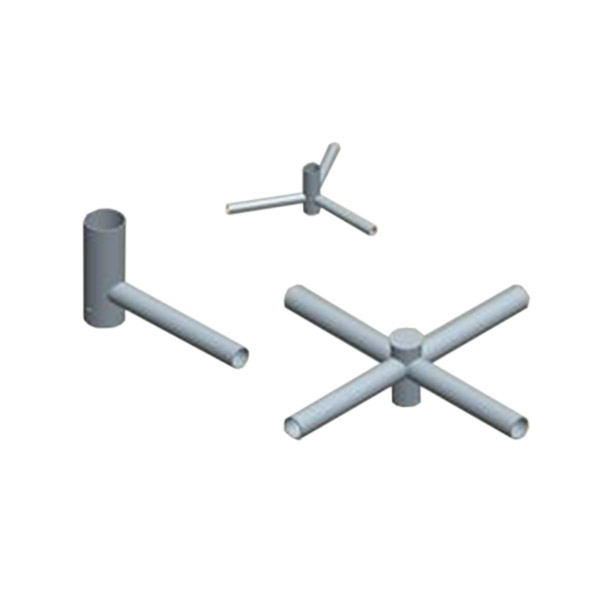

ARM Horizontal Arms

Non-Decorative Arms and Brackets

By Holophane

  • Overview
  • Specifications
The ARM Series offers a variety of Steel and Aluminum round horizontal mount solutions for tenon mount arm lighting installations. View drawings below for additional information
Read More
Read Less
Product Type Arm
Arm Mounting Type Tenon
Mounting Type Pole Mount
Primary Material Aluminum, Steel
Architectural Style Utility
Series ARM137, ARM136, ARM135, ARM151, ARM150, ARM138, ARM153, ARM152

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET ARM135.pdf ARM135 Aluminum, spoke arm 3/30/2023 View
    SPEC SHEET ARM136.pdf ARM136 Aluminum, 2 spoke arm 3/30/2023 View

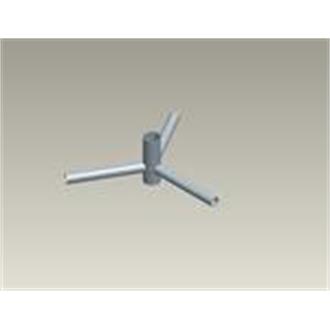

    SPEC SHEET ARM137.pdf ARM137 Aluminum, 3 spoke arm 3/30/2023 View
    SPEC SHEET ARM138.pdf ARM138 Aluminum, 4 spoke arm (4@90), 2-3/8IN OD X 18IN long tenon, hub fit 3.5IN RTA pole top 3/28/2023 View

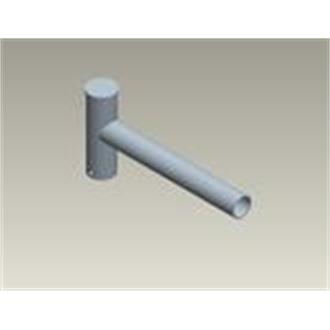

    SPEC SHEET ARM150.pdf Steel, spoke arm, 2-3/8IN OD X 18IN long tenon, slip fits B04 tenon 3/30/2023 View
    SPEC SHEET ARM151.pdf Steel, 2 spoke arm (2@180), 2-3/8IN OD X 18IN long tenon, slip fits B04 tenon 3/30/2023 View
    SPEC SHEET ARM152.pdf Steel, 3 spoke arm (3@120), 2-3/8IN OD X 18IN long tenon, slip fits B04 tenon 3/30/2023 View
    SPEC SHEET ARM153.pdf Steel, 4 spoke arm (4@90), 2-3/8IN OD X 18IN long tenon, slip fits B04 tenon 3/30/2023 View
