ARM & BR Horizontal Arms

Non-Decorative Commercial Arms & Brackets

By Holophane

  • Overview
  • Specifications
Read More
Read Less
Product Type Arm
Arm Mounting Type HUB, Tenon
Mounting Type Pole Mount, Post Top
Primary Material Aluminum, Steel
Architectural Style Utility
Series BR1925, BR1924, BR1929, BR1928, BR1927, BR1932, BR1931, BR1930, BR1935, BR1934, BR1933, BR1941, BR1940, BR1939, BR1938, BR1937, BR1936, BR294, BR293, BR292, BR298, BR297, BR296, BR295, BR954, BR953, BR952, BR951, ARM137, ARM136, ARM135, ARM151, ARM150, ARM138, ARM153, ARM152, BR1057, BR1056, BR1055, BR1058, BR1062, BR1063, BR1061, BR1060, BR1066, BR1064, BR1069, BR1068, BR1072, BR1071, BR1070, BR1075, BR1074, BR1073, BR1926
  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View

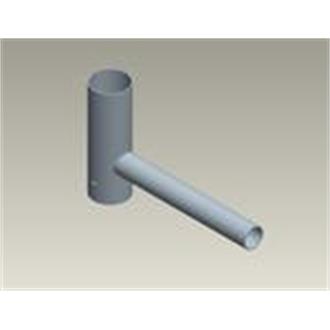

    SPEC SHEET ARM135.pdf ARM135,Aluminum, spoke arm, 2-3/8IN OD X 18IN long tenon, hub fit 3.5IN RTA pole top 3/30/2023 View

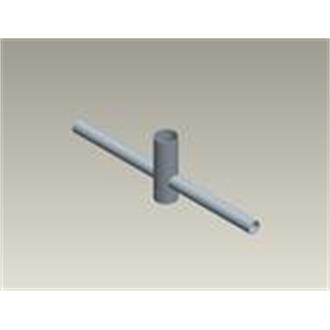

    SPEC SHEET ARM136.pdf ARM136,Aluminum, 2 spoke arm (2@180), 2-3/8IN OD X 18IN long tenon, hub fit 3.5IN RTA pole top 3/30/2023 View
    SPEC SHEET ARM137.pdf ARM137,Aluminum, 3 spoke arm (3@120), 2-3/8IN OD X 18IN long tenon, hub fit 3.5IN RTA pole top 3/30/2023 View

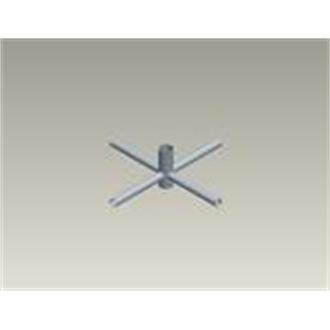

    SPEC SHEET ARM138.pdf Aluminum, 4 spoke arm (4@90), 2-3/8IN OD X 18IN long tenon, hub fit 3.5IN RTA pole top 3/28/2023 View

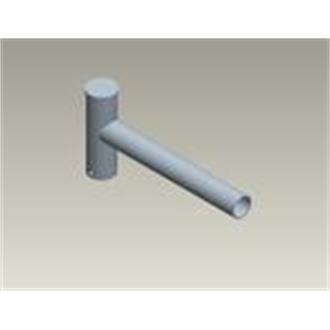

    SPEC SHEET ARM150.pdf Steel, spoke arm, 2-3/8IN OD X 18IN long tenon, slip fits B04 tenon 3/30/2023 View

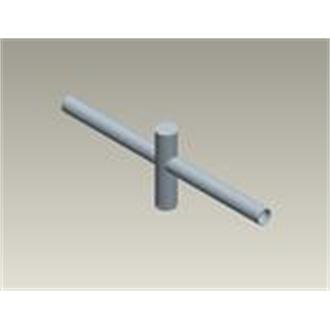

    SPEC SHEET ARM151.pdf Steel, 2 spoke arm (2@180), 2-3/8IN OD X 18IN long tenon, slip fits B04 tenon 3/30/2023 View
    SPEC SHEET ARM152.pdf Steel, 3 spoke arm (3@120), 2-3/8IN OD X 18IN long tenon, slip fits B04 tenon 3/30/2023 View

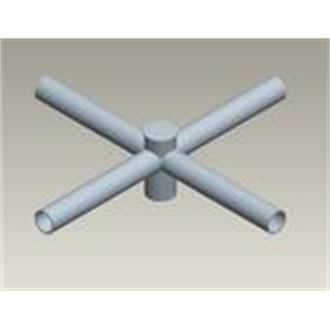

    SPEC SHEET ARM153.pdf Steel, 4 spoke arm (4@90), 2-3/8IN OD X 18IN long tenon, slip fits B04 tenon 3/30/2023 View

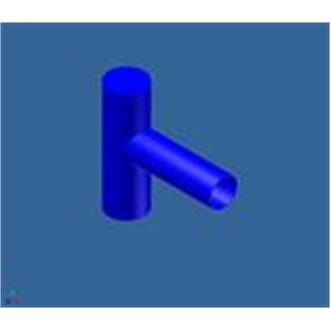

    SPEC SHEET BR1055.pdf Steel spoke arm for one unit 2-3/8 inch OD X 9 inch long tenon slip fits B04 tenon 3/30/2023 View
    SPEC SHEET BR1056.pdf Steel two spoke arm for two units (2@180) 2-3/8 inch OD X 8 inch long hub. Arm Slip fits B04 tenon 3/30/2023 View
    SPEC SHEET BR1057.pdf Steel three spoke arm for three units (3@120) 2-3/8 inch OD X 9 inch long tenons slip fits B04 tenon 3/30/2023 View
    SPEC SHEET BR1058.pdf Steel four spoke arm for four units (4@90) 2-3/8 inch OD X 9 inch long tenons slip fits B04 tenon 3/30/2023 View

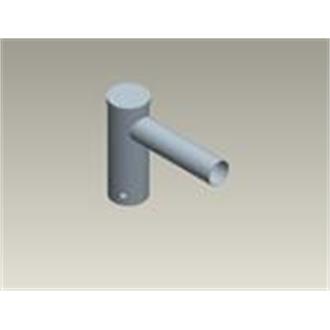

    SPEC SHEET BR1060.pdf Aluminum spoke arm for one unit, 2-3/8IN OD X 8-1/4IN long hub fits 3.0RTA 3/28/2023 View

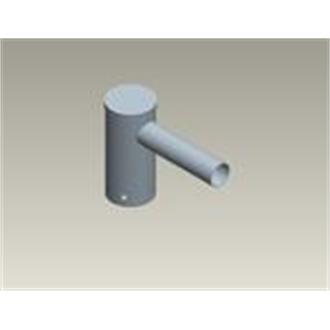

    SPEC SHEET BR1061.pdf Aluminum spoke arm for 1-unit,2-3/8IN Aluminum spoke arm for one unit, 2-3/8IN OD X 8-1/4IN long hub 3/28/2023 View
    SPEC SHEET BR1062.pdf Aluminum spoke arm for one unit, 2-3/8IN OD X 8-1/4IN long hub fits 4.5RTA 3/28/2023 View

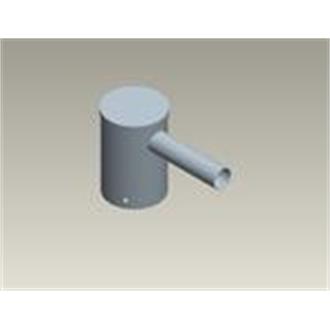

    SPEC SHEET BR1063.pdf Aluminum spoke arm for one unit, 2-3/8IN OD X 8-1/4IN long hub fits 6.0RTA 3/29/2023 View

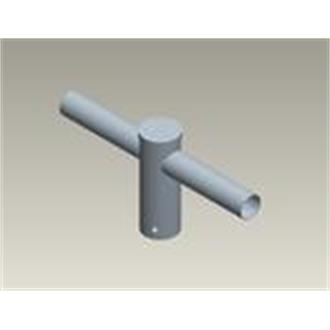

    SPEC SHEET BR1064.pdf Aluminum two spoke arm for two units (2@180), 2-3/8IN OD X 8-1/4IN long hub fits 3.0RTA 3/29/2023 View
    SPEC SHEET BR1066.pdf Aluminum two spoke arm for two units (2@180), 2-3/8IN OD X 8-1/4IN long hub fits 4.5RTA 11/16/2020 View

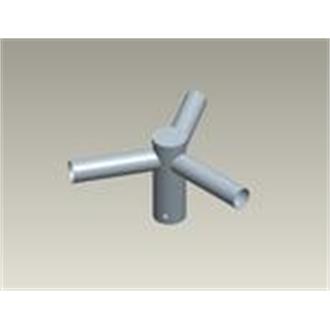

    SPEC SHEET BR1068.pdf Aluminum three spoke arm for three units (3@120), 2-3/8IN OD X 8-1/4IN long hub fits 3.0RTA 3/29/2023 View
    SPEC SHEET BR1069.pdf Aluminum three spoke arm for three units (3@120), 2-3/8IN OD X 8-1/4IN long hub fits 4.0RTA 3/29/2023 View

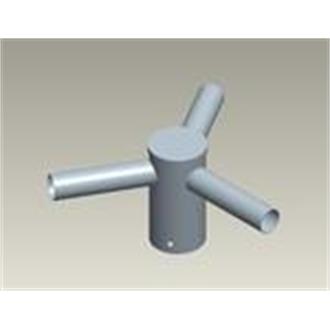

    SPEC SHEET BR1070.pdf Aluminum three spoke arm for three units (3@120), 2-3/8IN OD X 8-1/4IN long hub fits 4.5RTA 3/29/2023 View

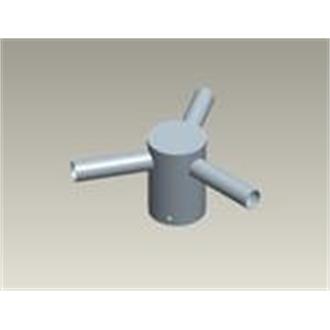

    SPEC SHEET BR1071.pdf Aluminum three spoke arm for three units (3@120), 2-3/8IN OD X 8-1/4IN long hub fits 6.0RTA 3/29/2023 View

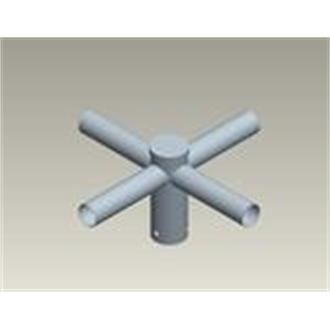

    SPEC SHEET BR1072.pdf Aluminum four spoke arm for four units (4@90), 2-3/8IN OD X 8-1/4IN long hub fits 3.0RTA 3/29/2023 View
    SPEC SHEET BR1073.pdf Aluminum four spoke arm for four units (4@90), 2-3/8IN OD X 8-1/4IN long hub fits 4.0RTA 3/29/2023 View

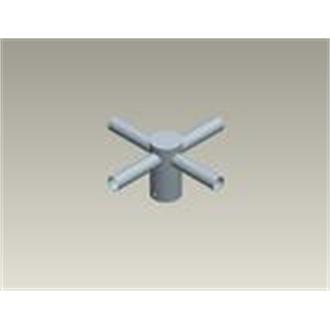

    SPEC SHEET BR1074.pdf Aluminum four spoke arm for four units (4@90), 2-3/8IN OD X 8-1/4IN long hub fits 4.5RTA 3/29/2023 View

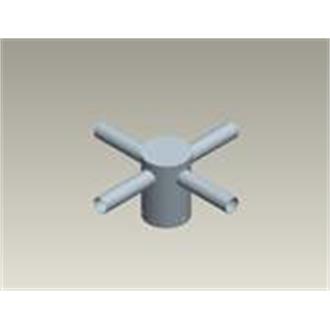

    SPEC SHEET BR1075.pdf Aluminum four spoke arm for four units (4@90), 2-3/8IN OD X 8-1/4IN long hub fits 6.0RTA 3/29/2023 View
    SPEC SHEET BR-1924.pdf Black Steel 2-unit brkt,horiz pipe arms,2-3/8IN OD slip fit B04 tenon,for use with at ATB series 1/26/2023 View
    SPEC SHEET BR1925.pdf Black Steel 2-light brkt, horiz pipe arms, 3IN hub fit for RTA pole top, for use with ATB series 11/7/2023 View
    SPEC SHEET BR1926 XX.pdf Black Steel 2-light bracket, horiz pipe arms, 4IN hub fit for RTA pole top, for use with ATB fixture 12/9/2020 View
    SPEC SHEET BR1927.pdf Black Steel 3-light bracket, horizontal pipe arms, 2-3/8in OD slip fit for B04 tenon, USE WITH ATB 12/23/2020 View
    SPEC SHEET BR1928 XX.pdf Black Steel 3-light bracket, horiz pipe arms, 3IN hub fit for RTA pole top, use with ATB fixtures 12/9/2020 View
    SPEC SHEET BR1929 XX.pdf Black Steel 3-light bracket, horiz pipe arms, 4IN hub fit for RTA pole top, use with ATB fixtures 12/9/2020 View
    SPEC SHEET BR1930 XX.pdf Black Steel 4-light bracket, horiz pipe arms, 2-3/8IN OD slipfit for B04 tenon, use with ATB fixture 12/9/2020 View
    SPEC SHEET BR1931 XX.pdf Black Steel 4-light bracket, horiz pipe arms, 3IN hub for RTA pole top, for use ATB fixtures 12/9/2020 View
    SPEC SHEET BR1932 XX.pdf Black Steel 4-light bracket, horiz pipe arms, 4IN hub fit for RTA pole top, use with horiz ATB 12/23/2020 View
    SPEC SHEET BR-1933-XX.pdf Black Steel 2-light bracket,round-square-round,horz tenons,2-3/8IN OD slipfit for B04 tenon,ATB fixt 12/23/2020 View
    SPEC SHEET BR1934 XX.pdf Black Steel 2-light bracket,round-square-round, horiz tenons, 3IN hub fit for RTA pole top, ATB Fixt 12/23/2020 View
    SPEC SHEET BR1935 XX.pdf Black Steel 2-light bracket,round-square-round, horiz tenons, 4IN hub fit for RTA pole top, for 12/23/2020 View
    SPEC SHEET BR1936 XX.pdf Black Steel 3-light bracket,round-square-round,horiz tenons,2-3/8IN OD slipfit for B04 tenon, ATB 12/23/2020 View
    SPEC SHEET BR1937 XX.pdf Black Steel 3-light bracket,round-square-round,horiz tenons,3IN hub fit for RTA pole top, ATB Fixtur 12/23/2020 View
    SPEC SHEET BR1938 XX.pdf Black Steel 3-light bracket,round-square-round,horiz tenons,4IN hub fit for RTA pole top, ATB fixtur 12/23/2020 View
    SPEC SHEET BR1939 XX.pdf Black Steel 4-light bracket,round-square-round,horiz tenons,2-3/8IN OD slipfit for B04 tenon, ATB 12/9/2020 View
    SPEC SHEET BR1940 XX.pdf Black Steel 4-light bracket,round-square-round,horiz tenons, 3IN hub fit for RTA pole top, ATB fixt 12/23/2020 View
    SPEC SHEET BR1941 XX.pdf Black Steel 4-light bracket,round-square-round,horiz tenons,4IN hub fit for RTA pole top, ATB fix 12/23/2020 View
    SPEC SHEET BR292.pdf Steel spoke arm 2 inch pipe size 30 inch arm length slip fits B04 tenon 3/30/2023 View
    SPEC SHEET BR293.pdf Steel two spoke arm (2@180) 2 inch pipe size 30 inch arm length slip fits B04 tenon 10/31/2023 View
    SPEC SHEET BR294.pdf Steel three spoke arm (3@120) 2 inch pipe size 30 inch arm length slip fits B04 tenon 3/30/2023 View
    SPEC SHEET BR295.pdf Steel four spoke arm (4@90) 2 inch pipe size 30 inch arm length slip fits B04 tenon 3/30/2023 View
    SPEC SHEET BR296.pdf Steel five spoke arm (5@72) 2 inch pipe size 30 inch arm length slip fits F06 tenon 3/30/2023 View
    SPEC SHEET BR297.pdf Steel six spoke arm (6@60) 2 inch pipe size 30 inch arm length slip fits F06 tenon 3/30/2023 View
    SPEC SHEET BR298.pdf Steel eight spoke arm (8@45) 2 inch pipe size 30 inch arm length slip fits F06 tenon 3/30/2023 View
    SPEC SHEET BR951.pdf Aluminum spoke arm one unit 2-3/8 inch OD X 17-1/4 inch long tenon hub fits 4.5RTA 3/28/2023 View
    SPEC SHEET BR952.pdf Aluminum spoke arm two units (2@180) 2-3/8 inch OD X 17-1/4 inch long tenons hub fits 4.5RTA 3/28/2023 View

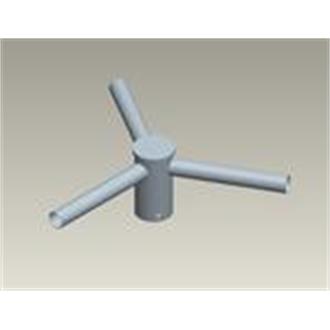

    SPEC SHEET BR953.pdf Aluminum spoke arm three units (3@120) 2-3/8 inch OD X 17-1/4 inch long tenons hub fits 4.5RTA 3/28/2023 View

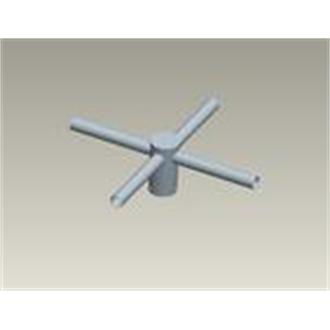

    SPEC SHEET BR954.pdf Aluminum spoke arm four units (4@90) 2-3/8 inch OD X 17-1/4 inch long tenons hub fits 6.0RTA 3/28/2023 View
  • Photometry & Revit (BIM)

  • Spectral Data Sheets

  • Guideline Specifications

    Document Type Document Title Description Updated View
    Guideline Specification Sheets Pole Arm Selection Guide.xlsx Arms & Brackets Selection Guide 1/12/2021
  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    CAD ARM136.dwg 2D DWG Aluminum, 2 spoke arm Dimensions 3/30/2023
    CAD ARM137.dwg 2D DWG Aluminum, 3 spoke arm dimensions 3/30/2023
    CAD ARM138.dwg 2D DWG Aluminum, 4 spoke arm (4@90), 2-3/8IN OD X 18IN long tenon, hub fit 3.5IN RTA pole top 3/28/2023
    CAD ARM151.dwg 2D DWG Steel, 2 spoke arm dimensions 3/30/2023
    CAD ARM152.dwg 2D DWG Steel, 3 spoke arm dimensions 3/30/2023
    CAD ARM153.dwg Steel, 4 spoke arm (4@90), 2-3/8IN OD X 18IN long tenon, 2.875IN OD slips fit for RTS poles (ESTO) 8/4/2020
    CAD ARM153.dwg 2D DWG Steel, 4 spoke arm Dimensions 2/17/2021
    CAD BR1056.dwg 2D DWG Steel spoke arm dimensions 3/30/2023
    CAD BR1057.dwg 2D DWG Steel 3 spoke arm dimensions 3/30/2023
    CAD BR1058.dwg 2D DWG Steel 4 spoke arm Dimensions 3/30/2023
    CAD BR1062.dwg 2D DWG Aluminum spoke arm dimensions 3/28/2023
    CAD BR1063.dwg 2D DWG Aluminum spoke arm dimensions 3/29/2023
    CAD BR1069.dwg 2D DWG Aluminum 3 spoke arm dimensions 3/29/2023
    CAD BR1070.dwg 2D DWG Aluminum 3 spoke arm Dimensions 3/29/2023
    CAD BR1927.DWG 2D DWG CAD Black Steel 3-light bracket Dimensions 12/23/2020
    CAD BR1936.dwg 2D DWG CAD Black Steel 3-light bracket Round-square-round Dimensions 12/23/2020
    CAD BR292.dwg 2D DWG Steel spoke arm Dimensions 3/30/2023
    CAD BR293.dwg 2D DWG Steel two spoke arm dimensions 10/31/2023
    CAD BR294.dwg 2D DWG Steel three spoke arm Dimensions 3/30/2023
    CAD BR295.dwg 2D DWG Steel four spoke arm dimensions 3/30/2023
    CAD BR296.dwg 2D DWG Steel five spoke arm dimensions 3/30/2023
    CAD BR297.dwg 2D DWG Steel six spoke arm dimensions 3/30/2023
    CAD BR298.dwg 2D DWG Steel eight spoke arm 3/30/2023
    CAD BR951.dwg 2D DWG Aluminum spoke arm Dimensions 3/28/2023
