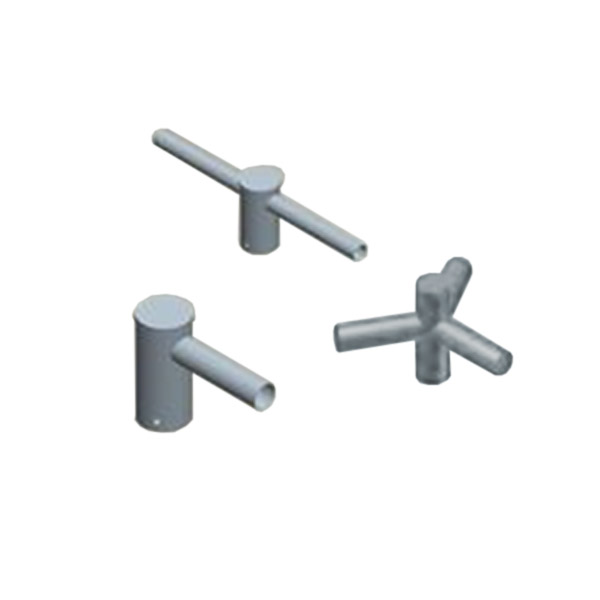

ARM & BR Horizontal Arms

Non-Decorative Commercial Arms & Brackets
  • Overview
  • Specifications
Read More
Read Less
Product Type Arm
Arm Mounting Type HUB, Side, Tenon
Mounting Type Pole Mount, Post Top
Primary Material Aluminum, Steel
Architectural Style Utility
Series ARM135, ARM136, ARM137, ARM138, ARM150, ARM151, ARM152, ARM153, BR1055, BR1056, BR1057, BR1058, BR1060, BR1061, BR1062, BR1063, BR1064, BR1066, BR1068, BR1069, BR1070, BR1071, BR1072, BR1073, BR1074, BR1075, BR1924, BR1925, BR1926, BR1927, BR1928, BR1929, BR1930, BR1931, BR1932, BR1933, BR1934, BR1935, BR1936, BR1937, BR1938, BR1939, BR1940, BR1941, BR292, BR293, BR294, BR295, BR296, BR297, BR298, BR951, BR952, BR953, BR954

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    Spec Sheet ARM_BR Horizontal Arms.pdf ARM_BR Horizontal Arms 11/11/2024 View

  • Photometry & Revit (BIM)

  • Spectral Data Sheets

  • Guideline Specifications

    Document Type Document Title Description Updated View
    Guideline Specification Sheets Pole Arm Selection Guide.xlsx Arms & Brackets Selection Guide 1/12/2021

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    CAD ARM136.dwg 2D DWG Aluminum, 2 spoke arm Dimensions 3/30/2023
    CAD ARM137.dwg 2D DWG Aluminum, 3 spoke arm dimensions 3/30/2023
    CAD ARM138.dwg 2D DWG Aluminum, 4 spoke arm (4@90), 2-3/8IN OD X 18IN long tenon, hub fit 3.5IN RTA pole top 3/28/2023
    CAD ARM151.dwg 2D DWG Steel, 2 spoke arm dimensions 3/30/2023
    CAD ARM152.dwg 2D DWG Steel, 3 spoke arm dimensions 3/30/2023
    CAD ARM153.dwg Steel, 4 spoke arm (4@90), 2-3/8IN OD X 18IN long tenon, 2.875IN OD slips fit for RTS poles (ESTO) 8/4/2020
    CAD ARM153.dwg 2D DWG Steel, 4 spoke arm Dimensions 2/17/2021
    CAD BR1057.dwg 2D DWG Steel 3 spoke arm dimensions 3/30/2023
    CAD BR1058.dwg 2D DWG Steel 4 spoke arm Dimensions 3/30/2023
    CAD BR1062.dwg 2D DWG Aluminum spoke arm dimensions 3/28/2023
    CAD BR1063.dwg 2D DWG Aluminum spoke arm dimensions 3/29/2023
    CAD BR1069.dwg 2D DWG Aluminum 3 spoke arm dimensions 3/29/2023
    CAD BR1070.dwg 2D DWG Aluminum 3 spoke arm Dimensions 3/29/2023
    CAD BR1927.DWG 2D DWG CAD Black Steel 3-light bracket Dimensions 12/23/2020
    CAD BR1936.dwg 2D DWG CAD Black Steel 3-light bracket Round-square-round Dimensions 12/23/2020
    CAD BR292.dwg 2D DWG Steel spoke arm Dimensions 3/30/2023
    CAD BR293.dwg 2D DWG Steel two spoke arm dimensions 10/31/2023
    CAD BR294.dwg 2D DWG Steel three spoke arm Dimensions 3/30/2023
    CAD BR295.dwg 2D DWG Steel four spoke arm dimensions 3/30/2023
    CAD BR296.dwg 2D DWG Steel five spoke arm dimensions 3/30/2023
    CAD BR297.dwg 2D DWG Steel six spoke arm dimensions 3/30/2023
    CAD BR298.dwg 2D DWG Steel eight spoke arm 3/30/2023
    CAD BR951.dwg 2D DWG Aluminum spoke arm Dimensions 3/28/2023
    Holophane DWGs ARM135.pdf ARM135 Aluminum, 1 spoke arm, 2-3/8IN OD X 18IN long tenon, hub fit 3.5IN RTA pole top 4/19/2024 View
    Holophane DWGs ARM136.pdf ARM136 Aluminum, 2 spoke arm (2@180), 2-3/8IN OD X 18IN long tenon, hub fit 3.5IN RTA pole top 4/19/2024 View
    Holophane DWGs ARM137.pdf ARM137 Aluminum, 3 spoke arm (3@120), 2-3/8IN OD X 18IN long tenon, hub fit 3.5IN RTA pole top 4/19/2024 View
    Holophane DWGs ARM138.pdf ARM138 Aluminum, 4 spoke arm (4@90), 2-3/8IN OD X 18IN long tenon, hub fit 3.5IN RTA pole top 4/19/2024 View
    Holophane DWGs ARM150.pdf ARM150 Steel, 1 spoke arm, 2-3/8IN OD X 18IN long tenon, slip fits B04 tenon 4/19/2024 View
    Holophane DWGs ARM151.pdf ARM151 Steel, 2 spoke arm (2@180), 2-3/8IN OD X 18IN long tenon, slip fits B04 tenon 4/19/2024 View
    Holophane DWGs ARM152.pdf ARM152 Steel, 3 spoke arm (3@120), 2-3/8IN OD X 18IN long tenon, slip fits B04 tenon 4/19/2024 View
    Holophane DWGs ARM153.pdf ARM153 Steel, 4 spoke arm (4@90), 2-3/8IN OD X 18IN long tenon, slip fits B04 tenon 4/19/2024 View
    Holophane DWGs BR1055.pdf BR1055 Steel, 1 spoke arm for 1-unit 2-3/8 inch OD X 9IN long hub. Arm Slip fits B04 tenon 4/19/2024 View
    Holophane DWGs BR1056.pdf BR1056 Steel, 2 spoke arm for 2-units (2@180)2-3/8IN OD X 9IN long tenon,Arm Slip fits B04 tenon 4/19/2024 View
    Holophane DWGs BR1057.pdf BR1057 Steel, 3 spoke arm for 3-units (3@120)2-3/8IN OD X 9IN long tenon. Arm slip fits B04 tenon 4/19/2024 View
    Holophane DWGs BR1058.pdf BR1058 Steel, 4 spoke arm for 4-units (4@90)2-3/8IN OD X 9IN long hub, Arm Slip fits B04 tenon 4/19/2024 View
    Holophane DWGs BR1060.pdf BR1060 Aluminum, 1 spoke arm for 1-unit, 2-3/8IN OD X 8-1/4IN long hub. Arm Slip fits 3.0 RTA 4/19/2024 View
    Holophane DWGs BR1061.pdf BR1061 Aluminum, 1 spoke arm for 1-unit, 2-3/8IN OD X 8-1/4IN long hub. Arm Slip fits 4.0 RTA 4/19/2024 View
    Holophane DWGs BR1062.pdf BR1062 Aluminum, 1 spoke arm for 1-unit, 2-3/8IN OD X 8-1/4IN long hub. Arm Slip fits 4.5 RTA 4/19/2024 View
    Holophane DWGs BR1063.pdf BR1063 Aluminum, 1 spoke arm for 1-unit, 2-3/8IN OD X 8-1/4IN long hub. Arm Slip fits 6.0 RTA 4/19/2024 View
    Holophane DWGs BR1064.pdf BR1064 Aluminum, 2 spoke arm for 2-units(2@180)2-3/8IN OD X 8-1/4IN long hub. Arm Slip fits 3.0 RTA 4/19/2024 View
    Holophane DWGs BR1066.pdf BR1066 Aluminum, 2 spoke arm for 2-units(2@180),2-3/8IN OD X 8-1/4IN long hub. Arm Slip fits 4.5RTA 4/19/2024 View

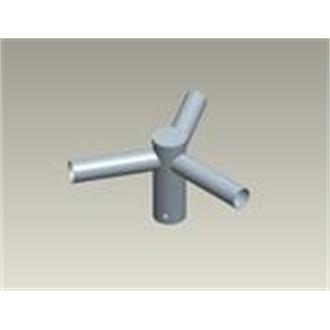

    Holophane DWGs BR1068.pdf BR1068 Aluminum, 3 spoke arm for 3-units(3@120),2-3/8IN OD X 8-1/4IN long hub. Arm Slip fits 3.0RTA 4/19/2024 View
    Holophane DWGs BR1069.pdf BR1069 Aluminum, 3 spoke arm for 3-units(3@120), 2-3/8IN OD X 8-1/4IN long hub fits 4.0 RTA Pole 4/19/2024 View
    Holophane DWGs BR1070.pdf BR1070 Aluminum, 3 spoke arm for 3-units(3@120), 2-3/8IN OD X 8-1/4IN long hub fits 4.5 RTA Pole 4/19/2024 View
    Holophane DWGs BR1071.pdf BR1071 Aluminum, 3 spoke arm for 3-units(3@120), 2-3/8IN OD X 8-1/4IN long hub fits 6.0 RTA Pole 4/19/2024 View
    Holophane DWGs BR1072.pdf BR1072 Aluminum, 4 spoke arm for 4-units(4@90), 2-3/8IN OD X 8-1/4IN long hub fits 3.0 RTA Pole 4/19/2024 View

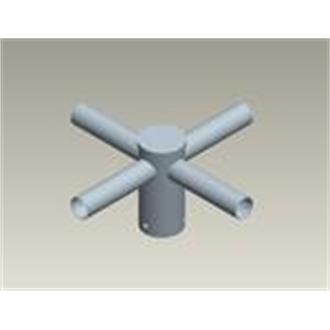

    Holophane DWGs BR1073.pdf BR1073 Aluminum, 4 spoke arm for 4-units(4@90), 2-3/8IN OD X 8-1/4IN long hub fits 4.0 RTA Pole 4/19/2024 View

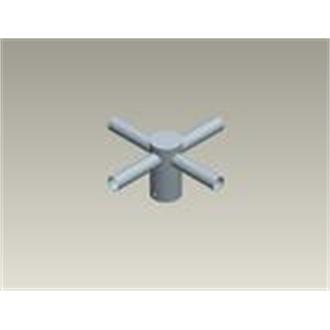

    Holophane DWGs BR1074.pdf BR1074 Aluminum, 4 spoke arm for 4-units(4@90), 2-3/8IN OD X 8-1/4IN long hub fits 4.5 RTA Pole 4/19/2024 View
    Holophane DWGs BR1075.pdf BR1075 Aluminum, 4 spoke arm for 4-units(4@90), 2-3/8IN OD X 8-1/4IN long hub fits 6.0 RTA Pole 4/19/2024 View
    Holophane DWGs BR-1924.pdf BR1924 Black Steel 2-unit brkt,horiz pipe arms,2-3/8IN OD slip fit B04 tenon,for use with at ATB FIX 4/19/2024 View
    Holophane DWGs BR1925.pdf BR1925 Black Steel 2-unit brkt,horiz pipe arm,3IN OD slip fit for B04 tenon,for use with ATB fixture 4/19/2024 View
    Holophane DWGs BR1926 XX.pdf BR1926 Black Steel 2-unit brkt,horiz pipe arms,4IN hub fit for RTA pole top,for use with ATB fixture 4/19/2024 View
    Holophane DWGs BR1927.pdf BR1927 Black Steel 3-unit brckt,horiz pipe arm,2-3/8IN OD slipfit for B04 tenon,use with ATB fixture 4/19/2024 View
    Holophane DWGs BR1928 XX.pdf BR1928 Black Steel 3-unit brkt,horiz pipe arms, 3IN hub fit for RTA pole top,use with ATB fixtures 4/19/2024 View
    Holophane DWGs BR1929 XX.pdf BR1929 Black Steel 3-unit brkt,horiz pipe arms,4IN hub fit for RTA pole top,use with ATB fixture 4/19/2024 View
    Holophane DWGs BR1930 XX.pdf BR1930 Black Steel 4-unit brkt,horiz pipe arms,2-3/8IN OD slipfit for B04 tenon,use with ATB fixture 4/19/2024 View
    Holophane DWGs BR1931 XX.pdf BR1931 Black Steel 4-unit bracket,horiz pipe arms, 3IN hub for RTA pole top, for use ATB fixture 4/19/2024 View
    Holophane DWGs BR1932 XX.pdf BR1932 Black Steel 4-unit bracket,horiz pipe arms, 4IN hub fit for RTA pole top,use with ATB fixture 4/19/2024 View
    Holophane DWGs BR-1933-XX.pdf BR1933 Black Steel 2-unit brkt,round-square-round,horz tenons,2-3/8IN OD slip fit for B04 tenon,ATB 4/19/2024 View
    Holophane DWGs BR1934 XX.pdf BR1934 Black Steel 2-units bracket,round-square-round, horiz tenons, 3IN hub RTA pole top, ATB 4/19/2024 View
    Holophane DWGs BR1935 XX.pdf BR1935 Black Steel 2-unit brkt,round-square-round,horiz tenons,4IN hub fit for RTA pole top, for ATB 4/19/2024 View
    Holophane DWGs BR1936 XX.pdf BR1936 Black Steel 3-unit brkt,round-square-round,horiz tenons,2-3/8IN OD slipfit for B04 tenon ATB 4/19/2024 View
    Holophane DWGs BR1937 XX.pdf BR1937 Black Steel 3-unit brkt,round-square-round,horiz tenons,3IN hub fit for RTA pole ATB Fixture 4/19/2024 View
    Holophane DWGs BR1938 XX.pdf BR1938 Black Steel 3-unit brkt,round-square-round,horiz tn,4IN hub fit for RTA pole top, ATB Fixture 4/19/2024 View
    Holophane DWGs BR1939 XX.pdf BR1939 Black Steel 4-unit brkt,round-square-round,horiz tenons,2-3/8IN OD slipfit for B04 tenon, ATB 4/19/2024 View
    Holophane DWGs BR1940 XX.pdf BR1940 Black Steel 4-unit brkt,round-square-round,horiz tenons, 3IN hub for RTA pole top, ATB fix 4/19/2024 View
    Holophane DWGs BR1941 XX.pdf BR1941 Black Steel 4-unit brkt,round-square-round,horiz tenons,4IN hub fit for RTA pole top, ATB fix 4/19/2024 View
    Holophane DWGs BR292.pdf BR292 Steel 1-spoke arm 2 inch pipe size 30 inch arm length slip fits B04 tenon 4/19/2024 View
    Holophane DWGs BR293.pdf BR293 Steel 2-spoke arm (2@180) 2 inch pipe size 30 inch arm length slip fits B04 tenon 4/19/2024 View
    Holophane DWGs BR294.pdf BR294 Steel 3-spoke arm (3@120) 2 inch pipe size 30 inch arm length slip fits B04 tenon 4/19/2024 View
    Holophane DWGs BR295.pdf BR295 Steel 4-spoke arm (4@90) 2 inch pipe size 30 inch arm length slip fits B04 tenon 4/19/2024 View
    Holophane DWGs BR296.pdf BR296 Steel 5-spoke arm (5@72) 2 inch pipe size 30 inch arm length slip fits F06 tenon 4/19/2024 View
    Holophane DWGs BR297.pdf BR297 Steel 6-spoke arm (6@60) 2 inch pipe size 30 inch arm length slip fits F06 tenon 4/19/2024 View
    Holophane DWGs BR298.pdf BR298 Steel 8-spoke arm (8@45) 2 inch pipe size 30 inch arm length slip fits F06 tenon 4/19/2024 View
    Holophane DWGs BR951.pdf BR951 Aluminum spoke arm 1-unit 2-3/8IN OD X 17-1/4IN long tenon hub fits 4.5 RTA Pole 4/19/2024 View
    Holophane DWGs BR952.pdf BR952 Aluminum, spoke arm 2-units(2@180)2-3/8IN OD X 17-1/4IN long tenons hub fits 4.5 RTA Pole 4/19/2024 View

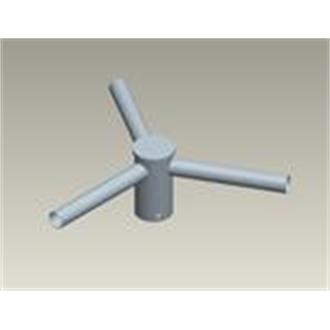

    Holophane DWGs BR953.pdf BR953 Aluminum, spoke arm 3-units (3@120)2-3/8IN OD X 17-1/4IN long tenons hub fits 4.5 RTA Pole 4/19/2024 View
    Holophane DWGs BR954.pdf BR954 Aluminum spoke arm 4-units (4@90) 2-3/8IN OD X 17-1/4IN long tenons hub fits 6.0 RTA Pole 4/19/2024 View
