BR Upsweep Arms

Spec Sheets

Document Type	Document Title	Description	Updated	View	Download	Email

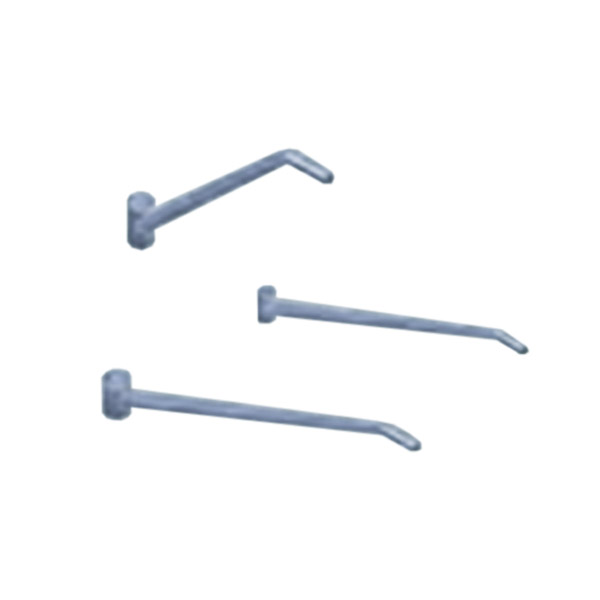

SPEC SHEET	BR1209 1.pdf	Aluminum Upswept single arm, 45IN length, 2-3/8" OD pipe size, hub fit 4.5IN RTA Pole Top	11/16/2020	View	Download	Email
SPEC SHEET	BR1209 2.pdf	Aluminum Upswept double arm, 45IN length, 2-3/8" OD pipe size, hub fit 4.5IN RTA Pole Top	11/16/2020	View	Download	Email
SPEC SHEET	BR1210 1.pdf	Aluminum upswept arm,single,68IN arm length,2-3/8IN OD pipe size, hub fit 4.5IN OD RTA Pole Top	11/16/2020	View	Download	Email
SPEC SHEET	BR1210-2.pdf	Aluminum upswept arm,double,68IN arm length,2-3/8IN OD pipe size, hub fit 4.5IN OD RTA Pole Top	11/16/2020	View	Download	Email
SPEC SHEET	BR1211-1.pdf	Aluminum upswept arm, single,90"arm length,2-3/8"OD pipe size, hub fit for use with 4.5" OD,RTA pole	11/17/2020	View	Download	Email
SPEC SHEET	BR1211-2.pdf	Aluminum upswept arm,double,90"arm length,2-3/8"OD pipe size, hub fit for use with 4.5IN OD RTA pole	11/17/2020	View	Download	Email
SPEC SHEET	BR1212-1.pdf	Aluminum upswept arm,single,45"arm length,2-3/8"OD pipe size, hub fit for use with 6.0" OD RTA pole	11/17/2020	View	Download	Email
SPEC SHEET	BR1212-2.pdf	Aluminum upswept arm,double,45"arm length,2-3/8"OD pipe size, hub fit for use with 6.0" OD RTA pole	11/17/2020	View	Download	Email
SPEC SHEET	BR1213-1.pdf	Aluminum upswept arm,single,68"arm length,2-3/8"OD pipe size, hub fit for use with 6.0"OD RTA pole	11/17/2020	View	Download	Email
SPEC SHEET	BR1213-2.pdf	Aluminum upswept arm,double,68"arm length,2-3/8"OD pipe size, hub fit for use with 6.0"OD RTA pole	11/17/2020	View	Download	Email
SPEC SHEET	BR1214-1.pdf	Aluminum upswept arm,single,90"arm length,2-3/8"OD pipe size, hub fit for use with 6.0"OD RTA pole	11/17/2020	View	Download	Email
SPEC SHEET	BR1214-2.pdf	Aluminum upswept arm,double,90"arm length,2-3/8"OD pipe size, hub fit for use with 6.0"OD RTA pole	11/17/2020	View	Download	Email
