rr_large

RR Remote Ballast

Retailer

by Holophane

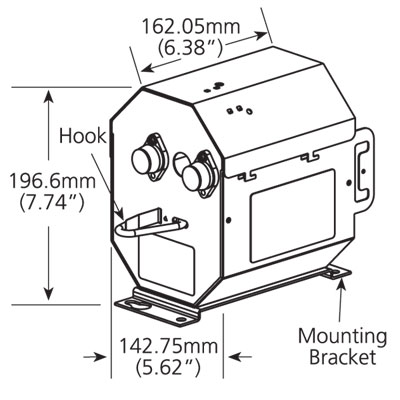

Indoor Remote Ballast for Remote Retailer Optics
Housing - Designed for Remote Retailer Optics - compact housing for areas with limited headroom. Formed steel housing finished with thermalset, electrostatically applied polyester paint over seven stage pre-cleaning treatment provides exceptional corrosion resistance. Ballast and solid state starters potted in epoxy for quiet operation.~13;~10;

~13;~10;Ballast - Holophane designed and manufactured, high power factor (over 90%), 1.0 ballast factor, copper wound ballast. 100% tested to provide full lamp output, while consuming less energy.~13;~10;

~13;~10;Installation - One piece full access cover simplifies wiring connections. Key holes and slots on housing mounting lugs provide flexible installation. Knockouts provided for 3/4" and 1" conduit.

Listings: Meets ANSI C82 Ballast standards. UL - 1029 listed, 40~186;C

  • Suggested Replacement Products

  • Spec Sheets

    Document Type Document Title Description Updated View
    {{document.DocumentType}} {{document.DocumentTitle}} {{document.Description}} {{document.UpdatedDate | date: 'MM/dd/yy'}} View
  • Specifications

    Brand Holophane
    Light Source HID - High Pressure Sodium, HID - Metal Halide
    Mounting Type Pendant, Surface, Suspended
    Series RR
    Product Type Troffer
