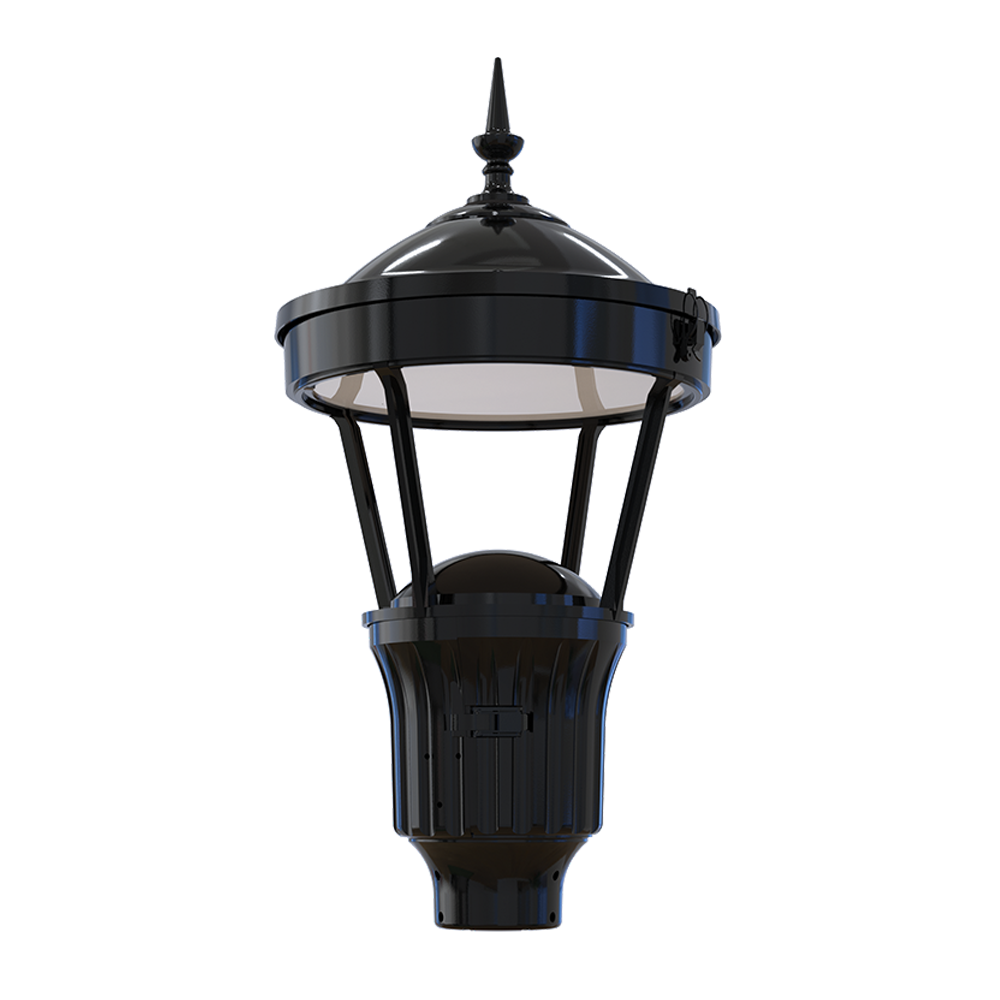

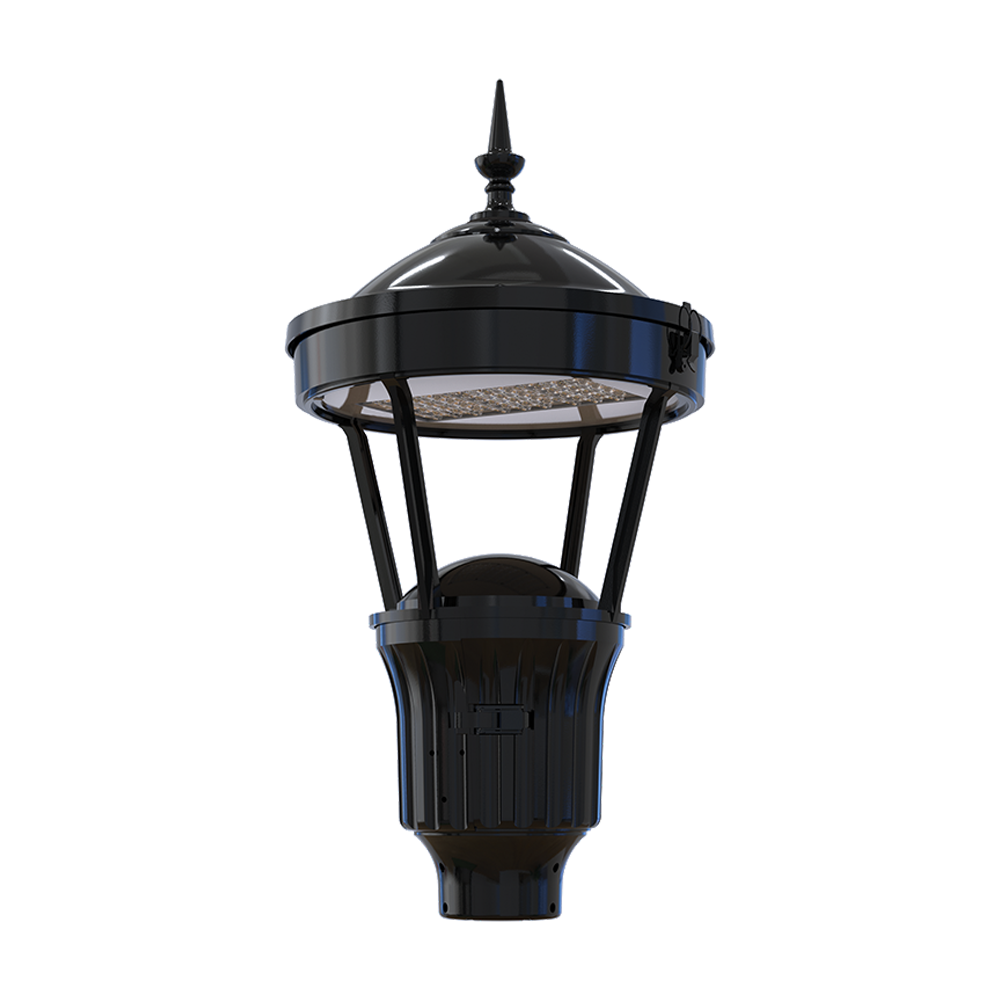

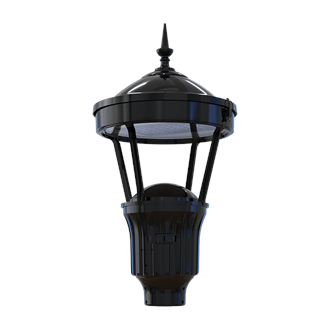

PUCL3 Lantern

Taft LED Post-Top Full Cutoff Lantern
    DLC StandardBuy America(n) Option AvailableBuy America(n) Option Available
  • Overview
  • Specifications

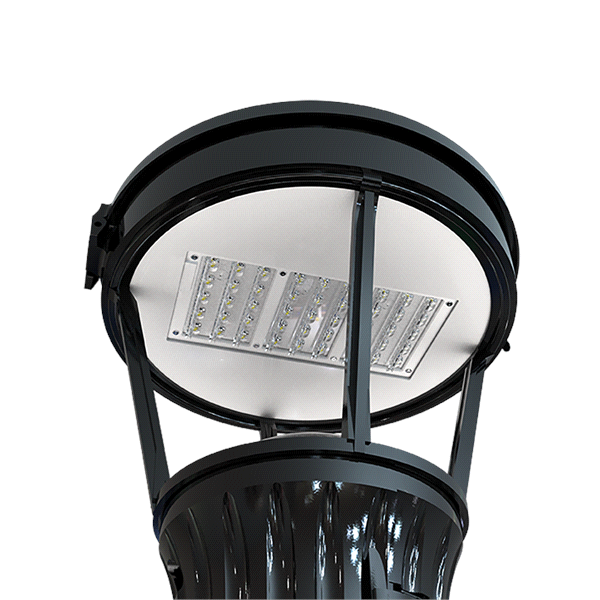

The PUCL3 Post-top LED lantern is designed to meet the IESNA requirements for zero-uplight classification and reduced impact on urban sky glow. It offers a wide range of distributions and lumen packages with multiple optical configurations to balance performance and visual comfort to your specific needs. The PUCL3 is a utility-friendly, feature-rich solution providing lighting designers with a high level of design flexibility in color temperature and optical distribution choices. Controls options from our DTL® and nLight® AIR brands range from dusk-to-dawn switching all the way through occupancy sensors or even wireless network controls. Available in multiple color choices with a variety of finial options.
Read More
Read Less
Light Source LED - Static
Lumens 4600 LM, 4700 LM, 4800 LM, 4900 LM, 5000 LM, 5200 LM, 5300 LM, 5700 LM, 5800 LM, 5900 LM, 6000 LM, 6100 LM, 6400 LM, 6600 LM, 6900 LM, 7000 LM, 7300 LM, 7400 LM, 7500 LM, 7600 LM, 7700 LM, 7800 LM, 7900 LM, 8100 LM, 8200 LM, 8400 LM, 8500 LM, 8600 LM, 8700 LM, 8800 LM, 9000 LM, 9100 LM, 9200 LM, 9400 LM, 9500 LM, 9700 LM, 9800 LM, 9900 LM, 10,000 LM, 10,200 LM, 10,300 LM, 10,400 LM, 10,500 LM, 10,600 LM, 10,700 LM, 10,800 LM, 10,900 LM, 11,100 LM, 11,200 LM, 11,300 LM, 11,400 LM, 11,500 LM, 11,600 LM, 11,700 LM, 11,800 LM, 11,900 LM, 12,000 LM, 12,100 LM, 12,200 LM, 12,400 LM, 12,500 LM, 12,600 LM, 12,700 LM, 12,800 LM, 13,100 LM, 13,200 LM, 13,300 LM, 13,400 LM, 13,500 LM, 13,600 LM, 13,700 LM, 14,100 LM, 14,200 LM, 14,300 LM, 14,400 LM, 14,500 LM, 14,600 LM, 14,700 LM, 15,300 LM, 15,600 LM, 15,700 LM, 15,800 LM, 16,900 LM
CCT / LED Color 2700 K, 3000 K, 4000 K
CRI 70
Compliance Listing BAA and BABA, DLC Standard
Environmental Listing Wet Location
Regulatory Listing UL
Product Type Post Top
Voltage Rating 120-277, 277-480, 347-480
Mounting Type Post Top, Tenon Slipfitter
Mounting Location Pole
Primary Material Aluminum
Architectural Style Historical
Series PUCL3

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    Spec Sheet PUCL3.pdf Taft Utility Postop FCO LED 3 3/7/2025 View

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.

    1 - 1 of results

    Description Report Design Tools
    CLICK HERE to start your request for a BIM Model or IES file.

  • Spectral Data Sheets

    >> CLICK HERE to Download Spectral Data FAQs

    Document Type Document Title Description Updated View
    Spectral Data Sheet SpectralDataSheet_HLP_PUCL3_40K_70CRI.pdf SpectralDataSheet_HLP_PUCL3_40K_70CRI 4/17/2023 View

  • Guideline Specifications

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions 912-00448-001.pdf House-side Shield Installation Instructions 4/18/2023 View
    Installation Instructions IM-303.pdf Gen3 FCO Lanterns Installation Instructions 4/17/2023 View
