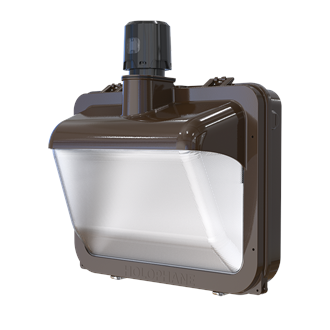

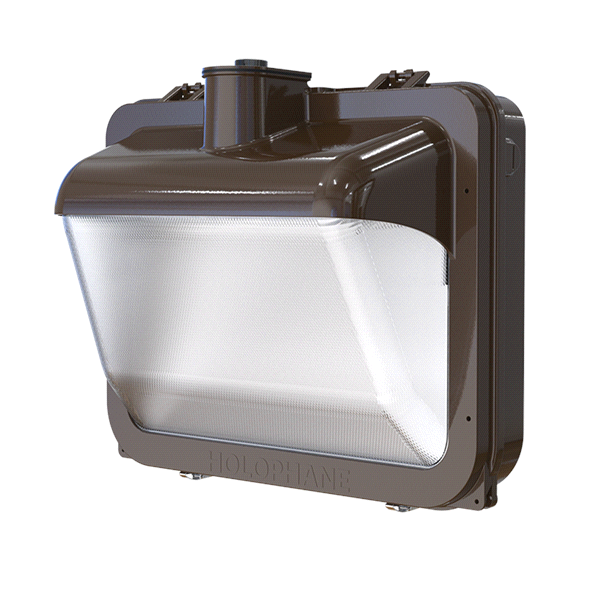

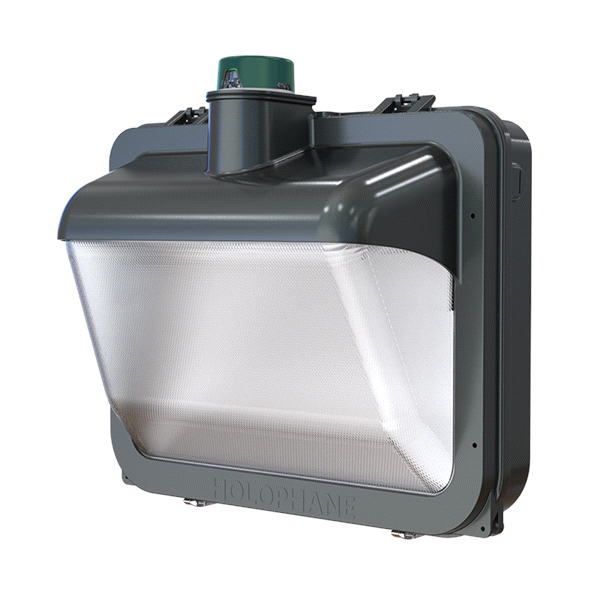

WCNG & WCNP

WallConnect™ Wallpack and Underpass Lighting
    DLC PremiumBuy America(n) Option AvailableBuy America(n) Option Available
  • Overview
  • Specifications
Read More
Read Less
Light Source LED - Static
Lumens 1800 LM, 1900 LM, 2000 LM, 2100 LM, 2200 LM, 2300 LM, 3600 LM, 3700 LM, 3900 LM, 4000 LM, 4100 LM, 4300 LM, 4400 LM, 5500 LM, 5600 LM, 5700 LM, 5800 LM, 6000 LM, 6100 LM, 6200 LM, 6300 LM, 6400 LM, 6700 LM, 6800 LM, 6900 LM, 7500 LM, 7600 LM, 7700 LM, 7800 LM, 7900 LM, 8100 LM, 8300 LM, 8400 LM, 8500 LM, 8600 LM, 8700 LM, 8900 LM, 9000 LM, 9100 LM, 9200 LM, 9300 LM, 9400 LM, 9600 LM, 9800 LM, 9900 LM, 10,000 LM, 10,200 LM, 10,400 LM, 10,600 LM, 10,700 LM, 10,800 LM, 11,600 LM, 11,700 LM, 11,800 LM, 11,900 LM, 12,700 LM, 12,800 LM, 12,900 LM, 13,600 LM, 13,800 LM, 13,900 LM, 14,000 LM, 14,200 LM, 14,400 LM, 14,700 LM, 14,800 LM, 15,000 LM, 15,200 LM, 15,400 LM, 15,700 LM, 15,900 LM
CCT / LED Color 3000 K, 4000 K, 5000 K
CRI 70
Compliance Listing BAA and BABA, DLC Premium
Environmental Listing IP66, Wet Location
Regulatory Listing UL924
Product Type Wallpack
Control Platform Dark to Light
Dimming Protocol 0-10V, DALI
Voltage Rating 120, 120-277, 208, 240, 277, 347, 480
Mounting Type Surface
Mounting Location Wall
Primary Material Aluminum
Architectural Style Traditional
Series WCNG, WCNP

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    Spec Sheet WCNG_WCNP.pdf WallConnect spec sheet 7/17/2024 View

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.
    Clear Filters

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.

  • Spectral Data Sheets

    >> CLICK HERE to Download Spectral Data FAQs

  • Guideline Specifications

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions 912-00455-001.pdf WallConnect Glass or Plastic LED Luminaire Installation and Maintenance Manual 6/24/2024 View
    Material Safety Data Sheet MSDS IOTA CP18 HE SD Battery.pdf MSDS - (ILBLP CP18 HE SD) Lead Acid Battery 7/17/2024 View

  • Utility Rebate Search

    To look-up a rebate for this product, please follow the steps below:

    Step 1: Enter the Zip Code or Select the State and Utility

    Step 2: Ensure that the correct Product Category is selected if there is more than one option


  • Replacement Parts

    Document Type Document Title Description Updated View
    Replacement Part Installation Instructions 912-00471-001.pdf WallConnect Glass or Plastic LED Replacement Kit 10/9/2023 View
    Replacement Part Spec Sheet WCN Repair Kits.pdf WCNGLED and WCNPLED Replacement Kits 4/2/2025 View

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs)

    Document Type Document Title Description Updated View
    Brochures WallConnect Brochure.pdf WallConnect Brochure 5/24/2024 View
    Sell Sheet WallConnect Sell Sheet.pdf WallConnect Sell Sheet 5/24/2024 View
