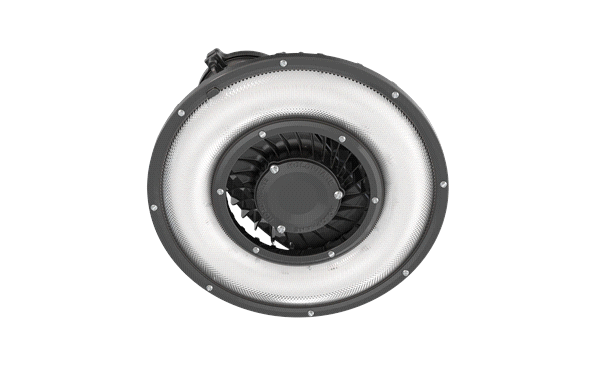

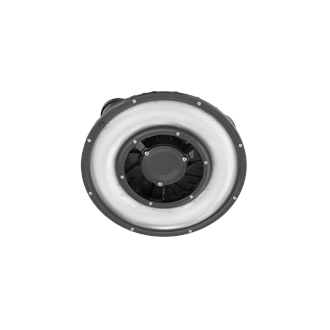

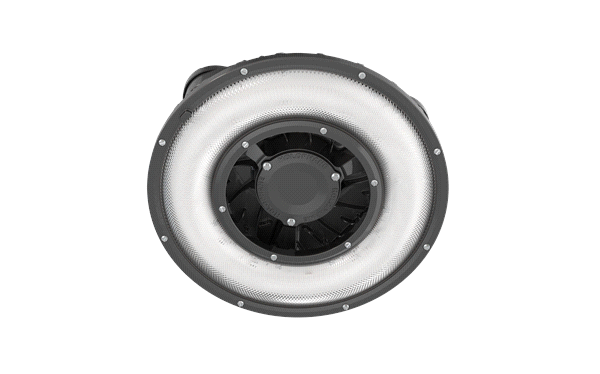

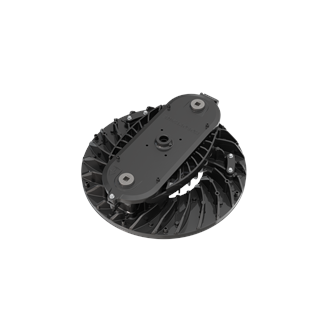

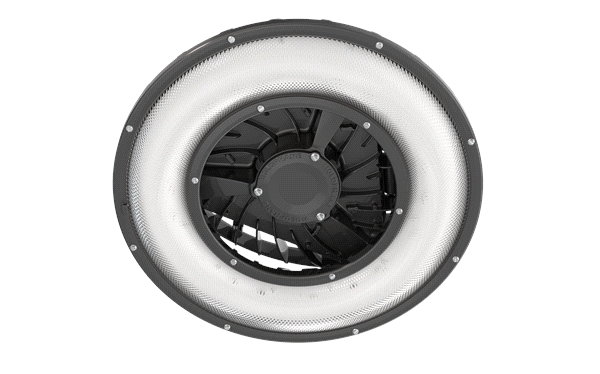

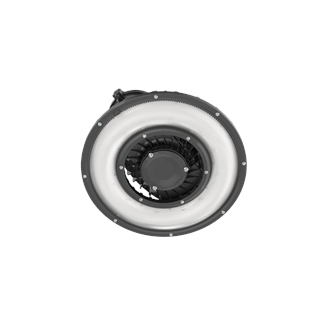

HOLOBAY™ Industrial LED High Bay

The Next Generation of Robust Round High Bays
    CA Title 20
  • Overview
  • Specifications
Read More
Read Less
Light Source LED - Static
Lumens 12,000 LM, 15,000 LM, 18,000 LM, 24,000 LM, 30,000 LM, 35,000 LM, 40,000 LM, 45,000 LM, 50,000 LM, 60,000 LM, 70,000 LM, 80,000 LM, 90,000 LM, 100,000 LM
CCT / LED Color 3000 K, 3500 K, 4000 K, 5000 K
CRI 70, 80, 90
Compliance Listing CA Title 20
Environmental Listing IP65, IP66, NEMA 4X, Wet Location
Regulatory Listing cCSAus, NOM, UL924
Product Type High Bay
Dimming Protocol 0-10V
Voltage Rating 120, 120-277, 125VDC, 208, 240, 250VDC, 277, 277-480, 347, 480
Mounting Type Arm Mount, Pendant, Surface, Suspended, Yoke
Mounting Location Ceiling, Crane, Pole, Sloped Ceiling, Wall
Primary Material Aluminum
Architectural Style Traditional
Series HOLO1, HOLO2

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    Spec Sheet 01- Holophane-HOLOBAY-HOLO1-High Bay.pdf HOLOBAY™ Industrial LED High Bay - HOLO1 (Small Optical) 12/6/2024 View
    Spec Sheet 02 - Holophane-HOLOBAY-HOLO2-High Bay.pdf HOLOBAY™ Industrial LED High Bay - HOLO2 (Large Optical) 12/6/2024 View
    Spec Sheet 03 - Holophane-HOLOBAY-HOLO REMOTE-High Bay.pdf HOLOBAY™ Remote Mount Industrial LED High Bay - HOLO1 (Small Optical) & HOLO2 (Large Optical) 12/6/2024 View
    Spec Sheet 04 - Holophane-HOLOBAY-HOLO CRANE-High Bay.pdf HOLOBAY™ Crane Mount Industrial LED High Bay - HOLO1 (Small Optical) & HOLO2 (Large Optical) 12/6/2024 View
