HAF Series
By Holophane
- Overview
- Specifications
Certain airborne contaminants can diminish the integrity of acrylic. Please refer to the Acrylic Environmental Compatibility Chart (HL-2445) for suitable uses.

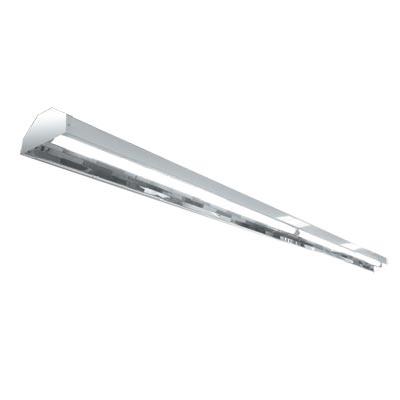

The HAF series is a commercial grade high efficiency fixture, delivering more uniform illumination in aisles than standard metal halide high bays with as much as 60% energy savings. T8 and T5HO tri-phosphor lamps have long lamp life with stable high color rendering capability, in a range of color temperatures. ~13;~10;
~13;~10;It's solid lightweight construction with rigid 2-piece housing for 12FT and 16FT units are easily connected in the field with 8 screws.~13;~10;Up to 16' in length, the HAF requires only two supports spaced as little as 8' apart requiring only 1 trip on high lifts. Simple to install using cable or chain and 4' and 8' sections utilize plug-together wiring for fast and simple power connections. Variety of optional factory-equipped cords & plugs for quick electrical connection. Easily accommodates required clearances around standard fire sprinklers. The HAF's optional built-in occupancy sensor with bisymmetric view is ideal for high bay aisle layouts.~13;~10;
~13;~10;HOUSING: Fully assembled with rivets and screws, 20 gauge cold rolled steel is standard, with heavy-duty 20 gauge CRS available. Standard finish is high-gloss white baked enamel. Optional post-painted baked polyester powdercoat finish in a variety of colors is available.~13;~10;
~13;~10;OPTICS: Precision-formed segmented reflector, using either Miro4~174; enhanced aluminum with 95% total reflectance, or white polyester powdercoat with 92%+ total reflectance. Uplight slots are optional in both white reflectors and Miro4 .020"-thick reflectors. ~13;~10;
~13;~10;MOUNTING : The HAF series is designed to be suspended by chain, cable, or pendant.
Listings: C/UL/US
| Product Type | Linear |
| Series | HAF |
-
