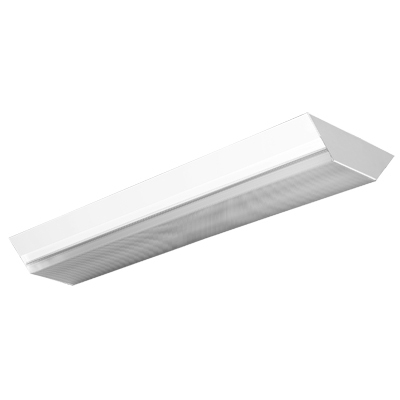

wrsm series_large

WRSM Series

Wraps

by Holophane

For Institutional, Industrial, and Retail.

Certain airborne contaminants can diminish the integrity of acrylic. Please refer to the Acrylic Environmental Compatibility Chart (HL-2445) for suitable uses.
The WRSM medium width fixture series is available in 4~8217; and 8~8217; nominal lengths. One or two lamp profile reflector extends the full width and length of the fixture, maximizing light output. Spread, normal, and task photometry are available. Easy wiring and service are provided by ample knock-outs and by the removable reflector/ballast cover. Fixture is shipped fully assembled and ready to install.

HOUSING: Cold rolled, pre-painted steel housing is rigid and fully assembled with rivets.~13;~10;

~13;~10;OPTICS: Reflector material is specular Miro4~174; enhanced aluminum with a total reflectivity of 95%. Prismatic wraparound virgin acrylic lens contains 50% DR acrylic for superior resistance to breakage.~13;~10;

~13;~10;MOUNTING: The WRSM series fixture is suitable for surface mounting as well as for suspended mounting with stems, threaded rods or chains.

Listings: C/UL/US

  • Suggested Replacement Products

  • Spec Sheets

    Document Type Document Title Description Updated View
    {{document.DocumentType}} {{document.DocumentTitle}} {{document.Description}} {{document.UpdatedDate | date: 'MM/dd/yy'}} View
  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.<br >

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    • Request BIM or IES Files

      CLICK HERE to start your request for a BIM Model or IES file.
  • Specifications

    Brand Holophane
    Environment Indoor
    Series WRSM4, WRSM8
    Product Type Wraparounds
