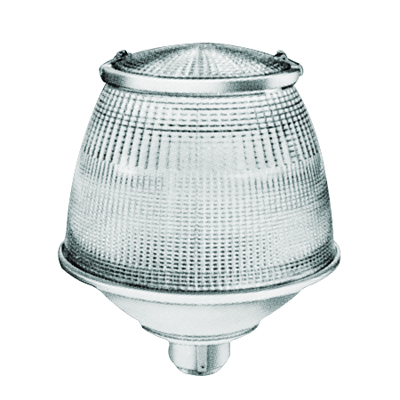

Outdoor Substation

Specialty

By Holophane

  • Overview
  • Specifications
The Outdoor Substation is ideal for lighting overhead buss bars, disconnect switches, insulators and fuses in electrical substation installations.
Construction: Cast aluminum housings provide base corrosion protection. Spun aluminum lower reflector. Stainless steel external hardware. Fully gasketed.

Finish: Electrostatically applied and baked on polyester powder coat paint for superior corrosion resistance.

Optical System: Fully prismatic, low glare, thermal shock resistant borosilicate glass refractor that is non-yellowing and resists environmental contamination.

Electrical System: Holophane manufactured high power factor, copper wound ballast that provides full rated wattage to the lamp. Reliable starting to -20F. Starter for HPS lamps is fully encapsulated. Lamp support is porcelain enclosed socket with nickel plated lamp grip screw shell.

Installation: Optical assembly only is 1-1/2" slipfit. Ballasted units utilize mounting bracket arm assembly.

Listings: UL/CUL & CSA Listed for Wet Locations

Read More
Read Less
Product Type Area Light
Mounting Type Arm Mount, Pendant, Pole Mount
Primary Material Glass
Architectural Style Traditional
Series SU2B
