Holophane Acorns & Spheres

LED Post-Top Lighting

When it comes to period-style LED post-top lighting, Holophane® offers the industry’s best solutions with a variety of acorn and globe form factors. With robust models reaching up to 20,000 lumens and 160 lumens per watt, our solutions provide the lowest total cost of ownership over a lifetime of up to 20 years. Industry-leading optical design and prismatic glass provide both durability and a visually comfortable appearance often sought after when enhancing your streetscapes.

hlp-acorns-and-spheres-glass-form-image1
hlp-acorns-and-spheres-cards-3-panel-features-new-gen3
hlp-acorns-and-spheres-cards-3-panel-features-reliable
hlp-acorns-and-spheres-cards-3-panel-features-controls

Features

  • 50-400 watt HID replacement solutions
  • Prismatic glass or acrylic globes for visual comfort
  • Gen 3 light engine with up to 20,000 lumens and 160 LPW
  • Long system life rated for > 100,000 at 25°C, L70
  • 20kV/10kA extreme surge protection option
  • Multiple distributions for any roadway or area lighting application
  • 2700K, 3000K, 4000K and 5000K CCT available
  • Lunar Optics® option to protect the night skies
  • Utility-friendly design simplifies installation and maintenance
  • Occupancy sensor options for energy saving control
  • Advanced network controls from nLight® and DTL® that optimize your energy and maintenance savings
  • Field-adjustable lumen output module available
  • IP rated construction - IP66 rated glass optical and IP65 rated electrical enclosure
  • OEM Certified Retrofit Kits available for existing Holophane HID (excluding spheres)

Scale and Flexibility in LED Post-tops

hlp-acorns-and-spheres-6-model-post-tops-image1
hlp-acorns-and-spheres-left-right-residential-scale-applications

Residential Scale Applications

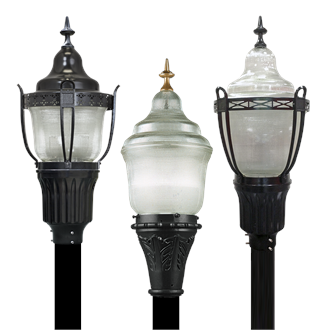

The design of the GranVille® LED and Prismasphere® LED is ideal for installations with mounting heights from 8 to 18 feet such as residential roadways or even walkways. The GranVille LED comes in two sizes to further fine tune the scale in your application. The GranVille Classic suits the 8-12ft range while the larger GranVille Premier is better suited for 10-15ft heights.
hlp-acorns-and-spheres-left-right-urban-scale-applications

Urban Scale Applications

The scale and lumen packages of the Washington Postllite® LED and Riverfront LED are ideal for installations with mounting heights from 12 to 25 feet such as downtowns, multi-lane roads or parking areas. The acorn-shaped Washington Postlite LED is available with prismatic globes in either glass or acrylic. The large spherical Riverfront LED comes in glass only and features decorative bands and ribs.
hlp-acorns-and-spheres-left-right-easy-on-the-eyes

Easy on the Eyes

Holophane sparkling prismatic optics are designed to be aesthetically appealing by day and visually comfortable by night. They are available in a variety of color temperature to meet the needs of your application. Standard offering in all models is 2700K, 3000K, 4000K and 5000K CCT.

Our prismatic acorns are also available with a completely redesigned Lunar Optics ® option. This feature helps preserve our night skies by reducing uplight and sky glow.

Decorative Housings

Holophane LED post-top acorns and spheres offer a host of attractive decorative housings to configure with our LED post-top lighting products. Refer to the chart below to determine which housing style is available for each of our acorn and sphere product series.

hlp-acorns-and-spheres-decorative-housings-chart-header
hlp-acorns-and-spheres-decorative-housings-chart1a

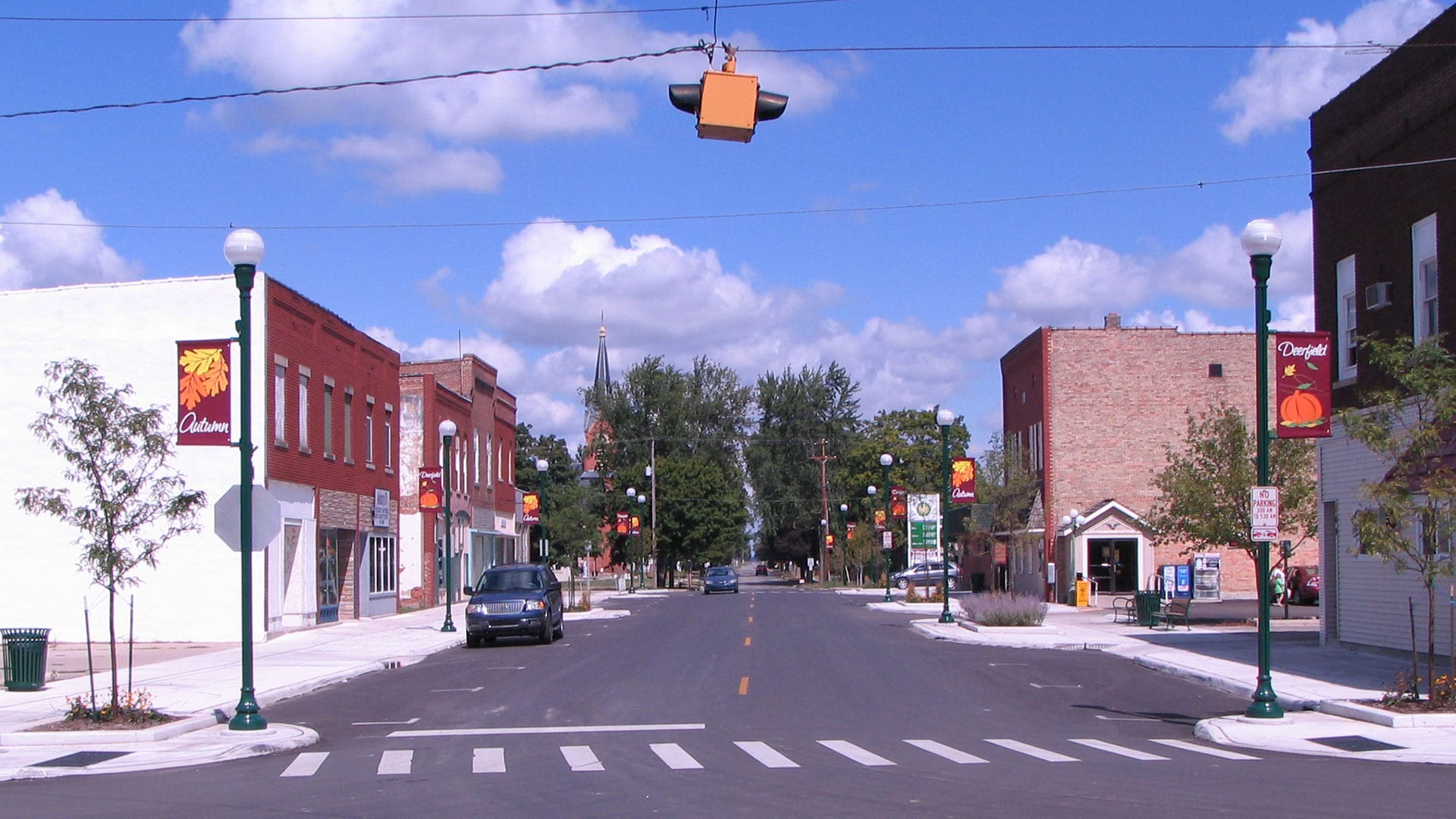

Gallery

hlp-acorns-and-spheres-left-right-cost-savings-controls1b

Cost-saving Controls

Holophane takes its Gen 3 design to another level with the addition of several new controls capabilities to provide additional application flexibility and energy savings.

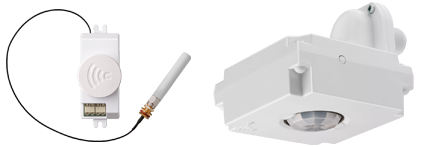

In addition to the standard internal 7-pin photocontrol receptacle and host of DTL dusk-to-dawn photocontrols, we have added a new optional receptacle inside the glass refractor globe. This permits a clean radio signal to be used via optional wireless network controls from our DTL® or nLight AIR® brands.

The optional nLight AIR system can provide a sophisticated network of luminaires that can talk to each other while also picking up movement via rSBOR occupancy sensors.

Case Study Video:
El Paso, Texas

In addition to products from American Electric Lighting® and Acuity Controls®, the city of El Paso, Texas utilized the Washington Postlite® LED in their recent lighting renovation. Watch this informative video to learn how the city reduced operational costs while improving the quality of light for their citizens and visitors.
