Holophane Hazardous C1D1

Explosion Proof Lighting

Designed for hazardous environments, the C1D1 portfolio from Holophane is ideal for environments where explosive and flammable gas, liquids, or vapors are present in normal operating conditions. They are also known for their outstanding thermal shock and impact resistant construction.

The extensive and versatile hazardous C1D1 product offering from Holophane compliments its already expansive product portfolio. These C1D1 products provide a robust offering of lumen packages and distributions. With multiple mounting options per fixture, there is an option to fit every space. Options are available for battery backup, visually comfortable frosted optic, and marine listing.

Meet the C1D1 Portfolio

HEXF1-Card-700x394
HEXF1
HEXF-Card-700x394
HEXF

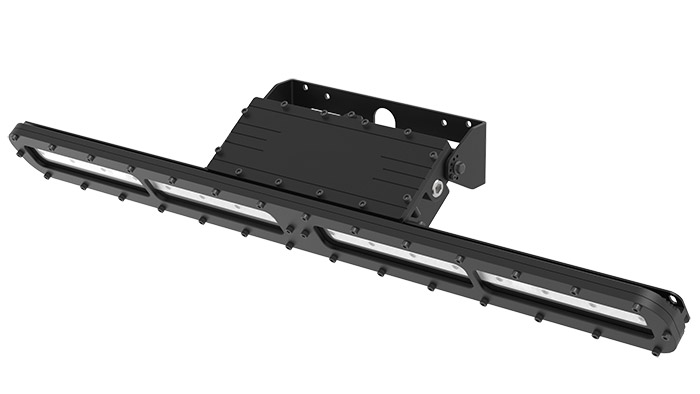

HEXS-Card-700x394
HEXS

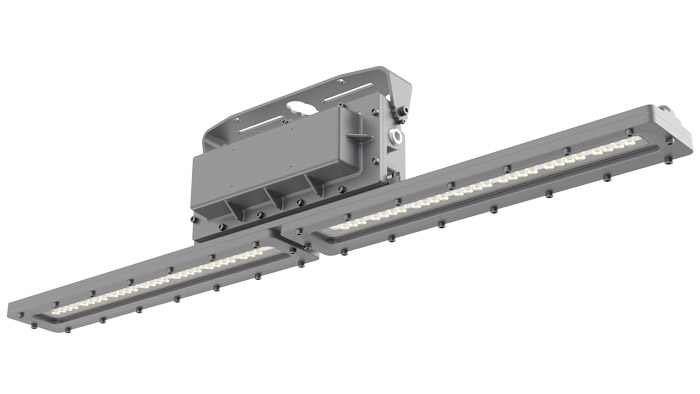

HEXSEM-Card-700x394
HEXSEM

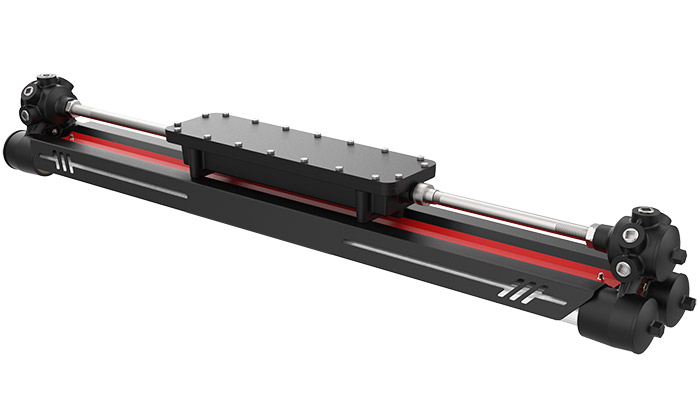

HET-Card-700x394
HET

HEXF1

  • 4 Lumen Packages
    • 2,700 – 8,500
  • MVOLT & HVOLT
    • HVOLT only on 7000 lumen
  • Mountings:
    • Yoke (wall/flood)
    • Ceiling
    • Pendant
    • Stanchion
  • -40C to 65C Ambient
  • Comes standard with: (1) ¾” NPT hub, 3ft whip w/ dimming, 10kV surge
  • Listings:
    • C1D1 (GRP B,C,D) = T5 to T6
    • C1D2 (GRP A-D) = T4 to T4A
    • C2D1 (GRP E, F, G) = T5 to T6
    • C2D2 (GRP F, G) = T5 to T6
    • C3
    • IP66, IP67


HEXF1-Montage
HEXF-Montage

HEXF

  • 4 Lumen packages
    • 11,830 – 21,230 lumens
  • MVOLT & HVOLT
  • Mountings:
    • Wall/Flood
    • Ceiling
    • Pendant
    • Pendant Hook
    • Stanchion
  • -40C TO 60C Ambient
  • Comes standard with: (3) ¾” NPT hubs, 3ft, 3-wire whip, 10kV surge
  • Listings:
    • C1D1 (GRP C, D) = T6
    • C1D2 (GRP A-D) = T4A
    • C2D2 (GRP F, G) = T4A
    • C3
    • IP66, NEMA 3 & 4X


HEXS

  • 2 Sizes – 4 Lumen Packages
    • 4,400 – 11,650 lumens
  • MVOLT & HVOLT
  • Mountings:
    • Ceiling/Wall/Pendant
    • Hanging
    • Pole
    • Retrofit Yoke
  • -40C TO 60C Ambient
  • Comes standard with: (3) ¾” NPT hubs, 3ft, 3-wire whip, 10kV surge, yoke bracket installed
  • Listings:
    • C1D1 (GRP C, D) = T6
    • C1D2 (GRP A-D) = T4A
    • IP66, NEMA 3 & 4X


HEXS-Montage
HEXS-EM-Montage

HEXSEM

  • Emergency battery version
  • 4ft = 7,500 – 10,260 lumens
  • MVOLT
  • Mountings:
    • Ceiling/Wall
    • Pendant
    • Hanging
    • Pole
  • -20C TO 45C Ambient
  • Comes standard with: (3) ¾” NPT hubs, 3ft, 3-wire whip, 10kV surge, yoke bracket installed
  • Listings:
    • C1D1 (GRP C, D) = T6
    • C1D2 (GRP C, D) = T6
    • IP66, NEMA 3 & 4X



HET

  • 4 sizes – 8 Lumen packages
    • 2,700 – 16,050 lumens
  • MVOLT & HVOLT
  • Mountings:
    • Ceiling/Wall
  • -20C TO 40C Ambient
  • Comes standard with: (5) ¾” NPT hubs, 3ft, 3-wire whip, 10kV surge
  • Listings:
    • C1D1 (GRP C, D) = T6
    • C1D2 (GRP A, D) = T6
    • C2D1 (GRP E, F, G) = T4
    • C2D2 (GRP E, F, G) = T4
    • C3
    • UL 1598A – Marine Rated


HEXT-Montage
