HMAO™ LED IV - High-mast Lighting

By Holophane

    DLC StandardBuy America(n) Option Available
  • Overview
  • Specifications

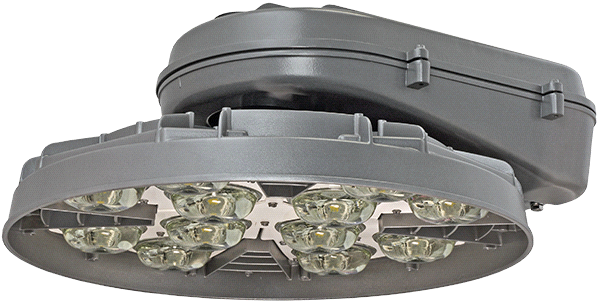

LED High-Mast lighting for highways, interchanges, ports, rail yards, container yards, correctional facilities, truck stops, water treatment plants, large area Industrial, airports, security lighting, toll plazas and sports lighting. The fourth generation Holophane HMAO™ LED high-mast fixture provides long system life and up to 65% energy reduction over traditional HID products. HMLED4 offers the flexibility of multiple lumen packages, integrated control options, both roadway and area optical distributions, all providing the customer choices on light levels and energy savings when replacing 400-1000+ watt HID products. This LED high-mast fixture is designed to excel for both retrofit and new construction. Available with a wide variety of advanced controls options as well as XVOLT feature to enhance power quality protection of 277-480V operation.
Read More
Read Less
Light Source LED - Static
Lumens 31,000 LM, 42,000 LM, 63,000 LM, 85,000 LM, 105,000 LM, 112,000 LM, 120,000 LM
CCT / LED Color 3000 K, 4000 K, 5000 K
CRI 70
Compliance Listing BAA, DLC Standard
Environmental Listing IP65, IP66, Wet Location
Regulatory Listing C-UL-US
Product Type High Mast
Voltage Rating 120-277, 277-480, 347-480
Mounting Type Arm Mount
Primary Material Aluminum
Architectural Style Traditional
Series HMLED4

Read More Read Less
