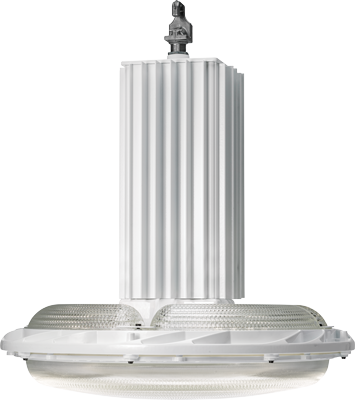

PHS High Bay

Phuzion™ LED High Bay with Uplight Single or Twin

By Holophane

    DLC Standard / Premium
  • Overview
  • Specifications
The Phuzion™ PHS LED high bay is designed to deliver intentional up-lighting, in addition to traditional down-lighting. With this design, it can reduce glare and visual contrast by essentially eliminating the cave-like atmosphere of high bay applications and creating unprecedented lighting uniformity for an open look and feel you can see. Its distinctive design ships standard with 86% down-light and 14% up-light. Independent dimming control of the up-light and down-light allows flexibility to proportionately alter this ratio. With the durability of the borosilicate glass, multiple lumen packages, versatile mounting and emergency battery back-up, the Phuzion™ PHS LED high bay is truly up, down and all around, one of a kind.
Read More
Read Less
Light Source LED - Static
Lumens 12,000 LM, 15,000 LM, 18,000 LM, 24,000 LM, 30,000 LM, 35,000 LM, 40,000 LM, 45,000 LM
CCT / LED Color 3000 K, 3500 K, 4000 K, 5000 K
CRI 70, 80, 90
Compliance Listing DLC Standard
Environmental Listing Damp Location, Dry Location
Regulatory Listing cCSAus
Product Type High Bay
Dimming Protocol 0-10V
Voltage Rating 120, 120-277, 208, 240, 277, 347, 347-480, 480
Mounting Type Pendant, Suspended
Mounting Location Ceiling
Primary Material Aluminum
Architectural Style Traditional
Series PHS

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET PHS_ Phuzion LED High Bay with Uplight 7/18/2022 View
    SPEC SHEET PHST_ Phuzion Twin LED High Bay with Uplight 7/21/2022 View
    SPEC SHEET RPHS_ Phuzion Remote LED High Bay with Uplight 7/25/2022 View
  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.
  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions IM-308 Twin Phuzion™ LED High Bay with Uplight (PHST) Installation Instructions View
    Installation Instructions IM-369-F Phuzion™ LED High Bay with Uplight (PHS) Installation Instructions 1/10/2022 View
    Installation Instructions IM-387-A Remote Phuzion™ LED High Bay with Uplight (RPHS) Installation Instructions 6/25/2021 View
    Installation Instructions IN-48-H QDH - Quick Disconnect Hanger 2/22/2021 View
  • Utility Rebate Search

    To look-up a rebate for this product, please follow the steps below:

    Step 1Enter the Zip Code or Select the State and Utility

    Step 2Ensure that the correct Product Category is selected if there is more than one option

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Brochures HL_659289.03POD.pdf Holophane Retail Brochure 5/11/2021 View
    Brochures Holophane Industrial Product Portfolio Selection of High Bays, Low Bays, Demanding and Hazardous Location products 10/13/2021 View
    Brochures PHS Brochure Phuzion LED High Bay with Uplight View
  • Need Product Assistance? (e.g. How to Buy, Technical Support, Warranty)

    How to Buy

    Holophane products are primarily sold through our factory direct sales team, as well as, a network of agents and distributors for the utility market.

    •  Find a Representative or Agent


    Technical Support

    Acuity Brands is dedicated to providing outstanding technical support. Please click on the appropriate link below, or feel free to
    call us at 1.800.705.SERV (7378).

    •  FAQs

    •  Troubleshooting Information (Lighting Fixtures)

    •  Contact Us (Lighting Fixtures)

    •  Contact Us (Controls Services & Support)


    Warranty

    Please click on the appropriate link below to learn more about Acuity Brands terms & conditions and product warranty options.

    •  Review Terms & Conditions or Product Warranties

    •  Register a Recently Purchased Product

    •  File a Warranty Claim


VIEW STOCKED PRODUCTS

  • Stock-Sku-FeedbackPlease provide as much feedback as possible during the pilot phase, CLICK HERE.

    View Price & Availability

    SKU data not available, please contact your local agent.

    {{getMinimumDisplayedIndex()}} - {{getMaximumDisplayedIndex()}} of {{filteredStockedProducts.length}} results

    {{icon.AltText}}
    Close Details View
    Product Details
    exclamation-v2-YL
    Product information is not available at this time. Please try again later.
    (No Products Found)
    {{icon.AltText}}
    {{result.Title}}
    {{result.Description}}
    Quantity
    {{(result.Quantity > 0) ? result.Quantity : 0}} in {{result.Location.substring(result.Location.indexOf("(")+1, result.Location.indexOf(")"))}}
    Total at all DCs: {{result.EnterpriseAvailability}}
    Distr. Price
    ${{result.Price | number : 2}}
    Distr. Price
    Contact Acuity
    Distr. Price
    Contact Rep
    Distr. Price
    GET PRICE
    Distr. Price
    No pricing established

    No Locations Could Be Found.


    This catalog # is not available at any location at this time. Inventory is replenished daily, please check back or contact your local sales representative or agency further details.

    exclamation-v2-YL
    Your session has expired. Click on the login link to view stocked product information.
    Login/Register
    exclamation-v2-YL
    Product information is not available at this time. Please try again later.
    Orders entered before noon will ship same day, and orders entered after noon will ship next day within your given timezone.
    Available Est. Ship Date Location In Transit
    {{loc.QUANTITY > 0 ? loc.QUANTITY : 0}} {{loc.ESTIMATED_SHIP_DATE}} {{loc.LOCATION}}     {{loc.IN_TRANSIT_QUANTITY}}
    Location Est. Restocking Qty & Date
    {{transitDetail.QUANTITY > 0 ? transitDetail.QUANTITY : 0}}{{transitDetail.ARRIVAL_DATE ? transitDetail.ARRIVAL_DATE : "Date Not Provided"}}
    Available
    {{loc.QUANTITY > 0 ? loc.QUANTITY : 0}}
    Est. Ship Date
    {{loc.ESTIMATED_SHIP_DATE}}
    Location
    {{loc.LOCATION}}
    In Transit
    {{loc.IN_TRANSIT_QUANTITY}}
    Location Est. Restocking Qty & Date
    {{transitDetail.QUANTITY > 0 ? transitDetail.QUANTITY : 0}}
    {{transitDetail.ARRIVAL_DATE ? transitDetail.ARRIVAL_DATE : "Date Not Provided"}}

Product Family

Holophane

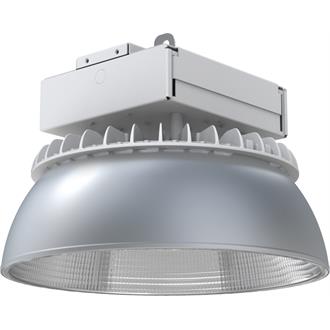

LED High Bays | Phuzion Family | H...
