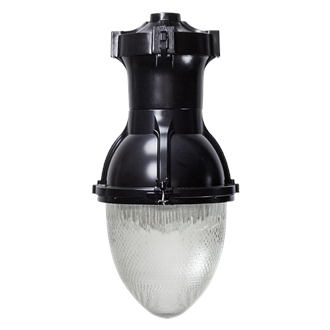

ESL3 Pendant

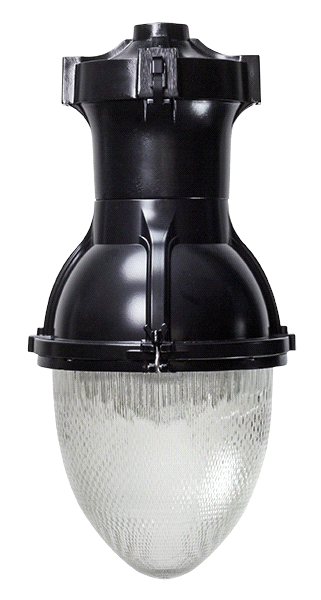

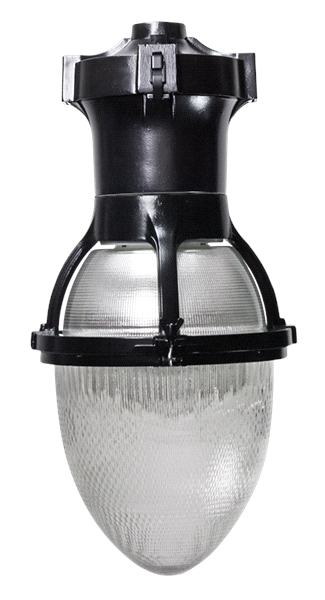

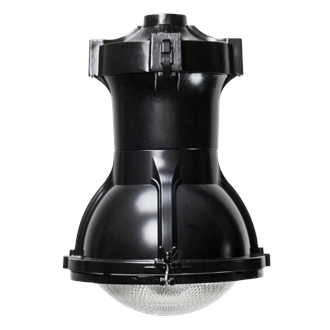

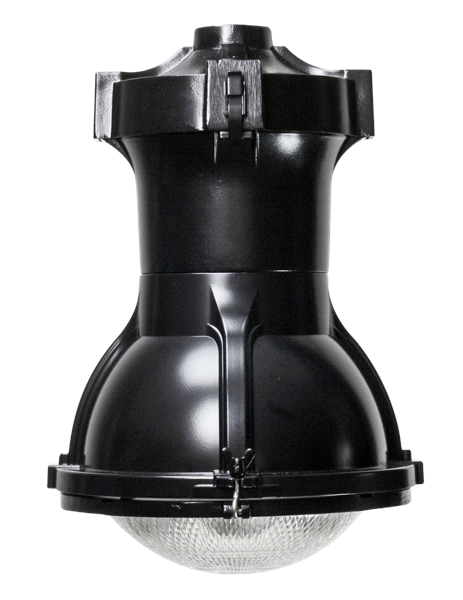

Esplanade® Tear Drop Large Roadway LED Pendant
    DLC StandardBuy America(n) Option AvailableBuy America(n) Option Available
  • Overview
  • Specifications
Read More
Read Less
Light Source LED - Static
Lumens 7200 LM, 8800 LM, 11,700 LM, 13,200 LM, 14,000 LM, 14,500 LM, 15,800 LM, 17,200 LM, 17,400 LM, 19,700 LM, 22,100 LM, 24,400 LM, 26,500 LM
CCT / LED Color 2700 K, 3000 K, 4000 K, 5000 K
CRI 70
Compliance Listing BAA and BABA, DLC Standard
Environmental Listing IP66
Regulatory Listing cCSAus
Product Type Pendant
Voltage Rating 120-277, 347-480
Mounting Type Pendant
Primary Material Aluminum
Architectural Style Historical
Series ESL3

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    Spec Sheet ESL3.pdf ESL3 Esplanade Large Tear drop LED 3/21/2024 View
    Spec Sheet LTDRL3.pdf Large Teardrop Retrofit LED 3 9/13/2024 View

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.
    Clear Filters

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.

  • Spectral Data Sheets

    >> CLICK HERE to Download Spectral Data FAQs

    Document Type Document Title Description Updated View
    Spectral Data Sheet SpectralDataSheet_HLP_ESL3_30K_70CRI.pdf SpectralDataSheet_HLP_ESL3_30K_70CRI 12/12/2022 View

  • Guideline Specifications

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions IM-396.pdf Utility Installation Sheet - Tear Drop LED 3 1/14/2016 View
    Installation Instructions IM-397-B.pdf Large Teardrop Retrofit LED 3 1/12/2022 View
    Installation Instructions IN-340.pdf TearDrop Gen3 House-side Shield Installation 5/9/2023 View

  • Utility Rebate Search

    To look-up a rebate for this product, please follow the steps below:

    Step 1: Enter the Zip Code or Select the State and Utility

    Step 2: Ensure that the correct Product Category is selected if there is more than one option


  • Replacement Parts

    Document Type Document Title Description Updated View
    Replacement Part Installation Instructions IN-468.pdf ESL3 and MPL3 Skirt Installation Instructions 12/14/2023 View

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs)

    Document Type Document Title Description Updated View
    Brochures Tear Drop LED Family Brochure.pdf Tear Drop LED Family Brochure 1/12/2022 View
    Nomenclature Crossover ESL2 & MPL2 Crossover-tool to ESL3 & MPL2 (2).xls ESL2 & MPL2 Crossover Tool 5/3/2022
    Sell Sheet LTDRL3 Sell Sheet.pdf Tear Drop LED 3 Retrofit Kits Flyer 7/11/2022 View
    Sell Sheet Tear Drop LED Large Sell Sheet.pdf Tear Drop LED Large Sell Sheet 1/6/2022 View
