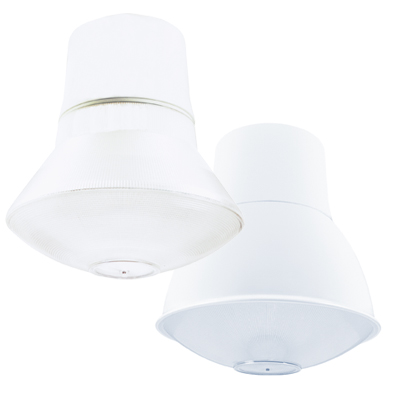

Vantage Series

Food Processing

by Holophane

For Food Processing Plants; NSF Certified for C-2 Splash Zone.

Certain airborne contaminants can diminish the integrity of acrylic. Please refer to the Acrylic Environmental Compatibility Chart (HL-2445) for suitable uses.

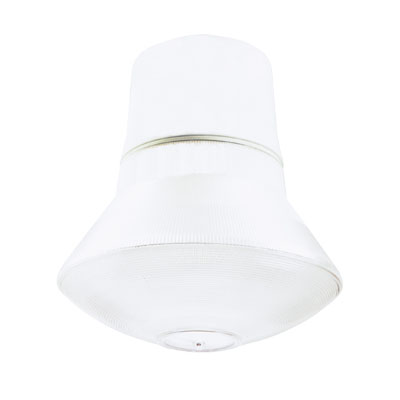

Holophane designed the Vantage™ VA luminaire to exceed the rigorous demands of food processing plants and other areas utilizing hose-down luminaires. The smooth, sloped exterior sheds water and prevents contaminants from adhering to the exterior. The gasket between the optical and housing as well as the gasket surrounding the re-lamp hole prevent hose spray water from entering the luminaire up to 3500 psi from four feet away.

The combination acrylic reflector/refractor provides enough uplight to create a uniformly lit area while still providing excellent light levels on the task. Available in MH and HPS as well as with regular and low loss ballasts. Now also available with 210W MasterColor® Elite system providing an exceptional lumen package with high CRI.

Listings: UL-1598; CSA Non-hazardous; 40°C Wet Location; NSF Certified for C-2 Splash Zone

More on the Vantage
Food Processing Line
(Requires Flash 8 Plug-in)

  • Suggested Replacement Products

  • Spec Sheets

    Document Type Document Title Description Updated View
    {{document.DocumentType}} {{document.DocumentTitle}} {{document.Description}} {{document.UpdatedDate | date: 'MM/dd/yy'}} View
  • Specifications

    Brand Holophane
    Light Source HID - High Pressure Sodium, HID - Metal Halide
    Environment Demanding, Indoor
    Regulatory Listing UL
    Voltage Rating 120, 208, 240, 277, 347, 480
    Mounting Type Pendant, Suspended
    Series VA, VH, VK
    Product Type High Bay
